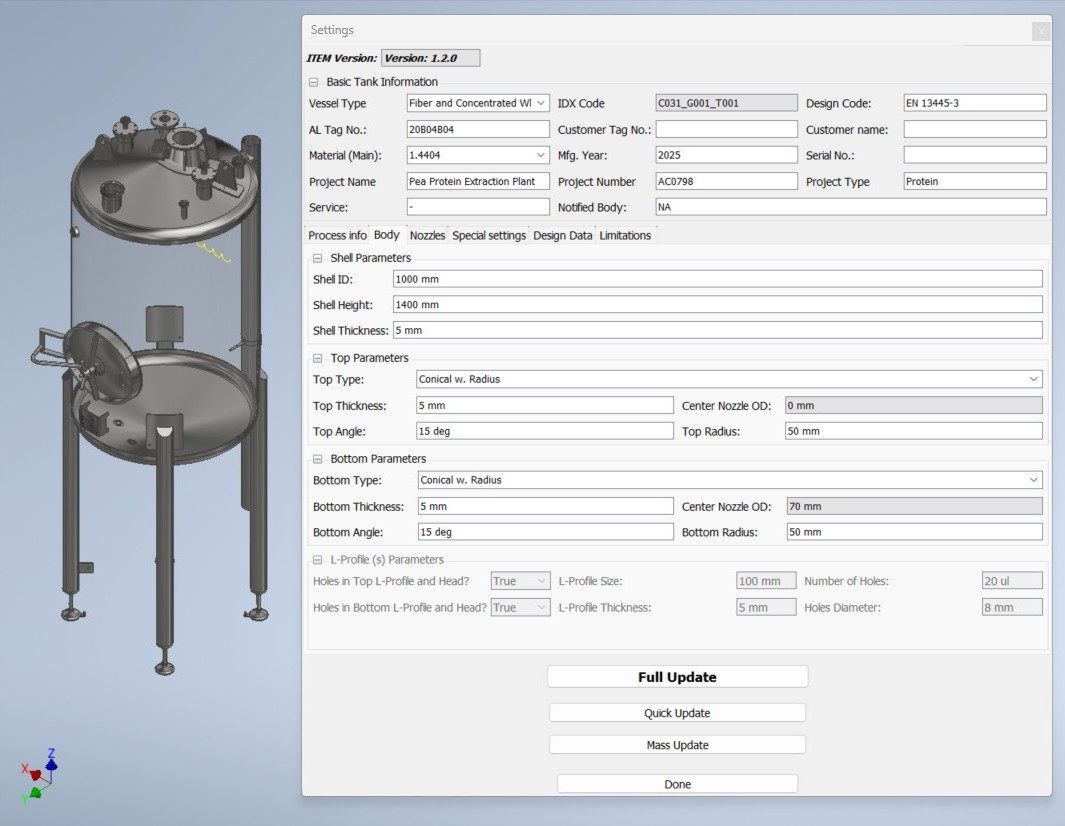

One form per product line
Process data, configurations and limits each get a tab. One click rebuilds the model; a mass update rebuilds a whole batch.

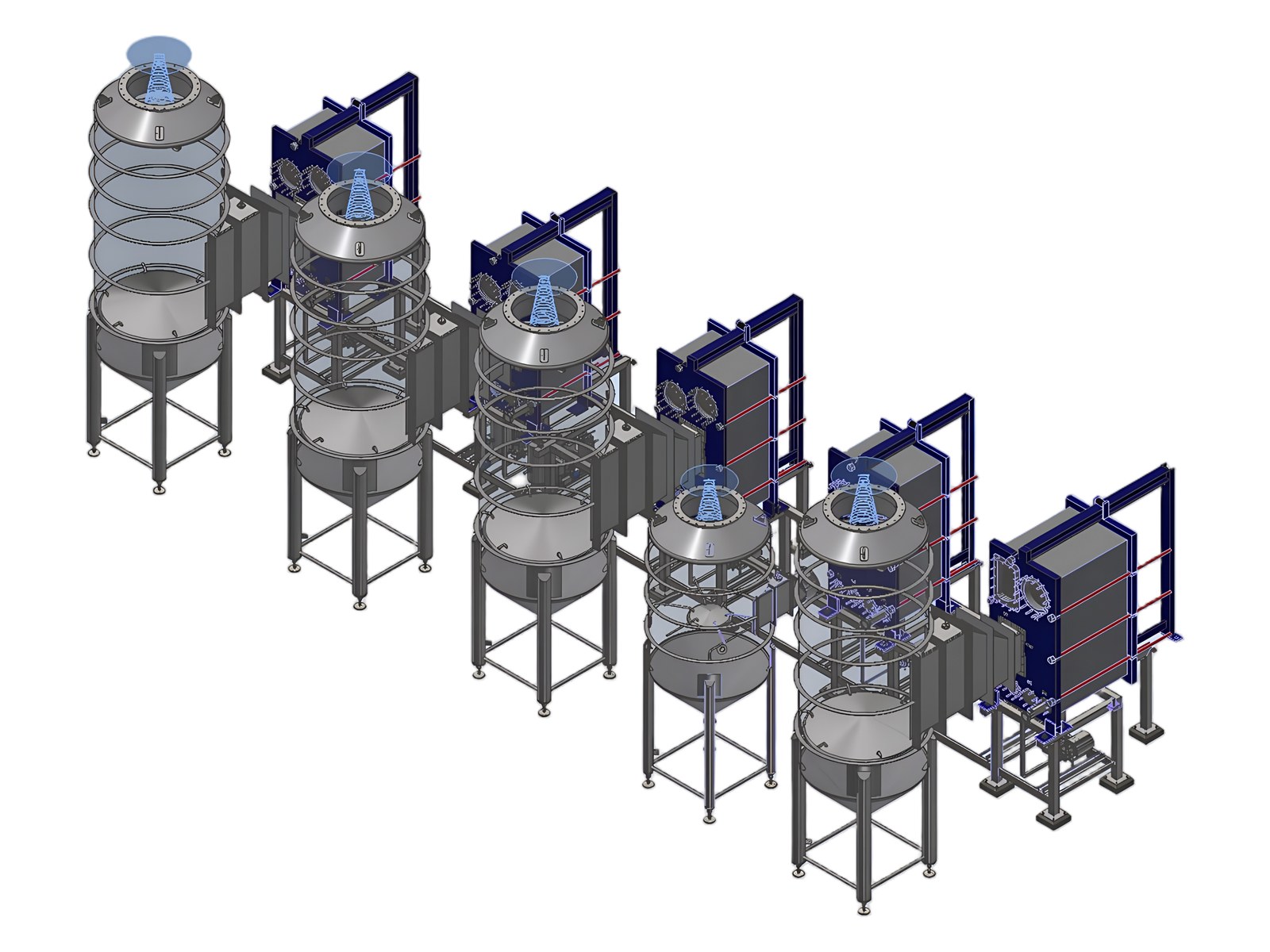

Process equipment design
A few inputs in a form. A finished design out.
Equipment makers design the same vessels, platforms and pipework again and again. Our configurators do it from a form: the model, parts and drawings build themselves.
- Industries
- Oil and gas, pharma, food
- Result
- About 80% of the repetitive work automated.

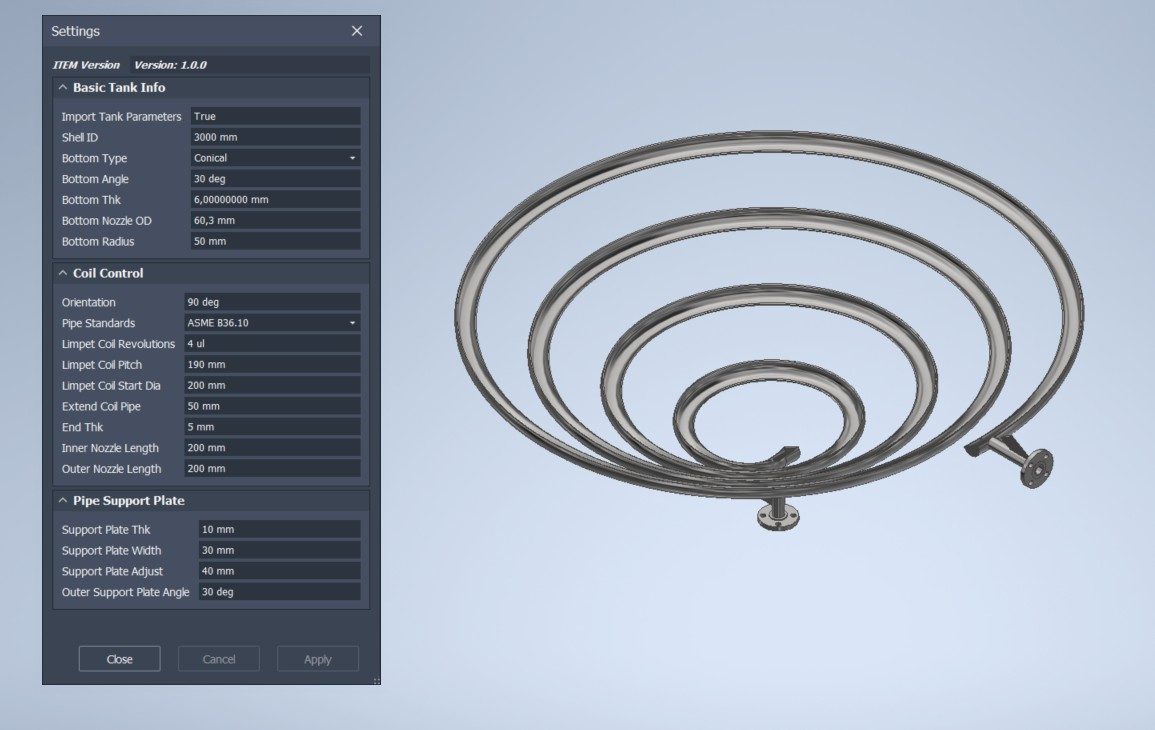

The same idea for every part
Coils, trays, inlets, legs, platforms and ladders each get their own form, built on Content Center parts.

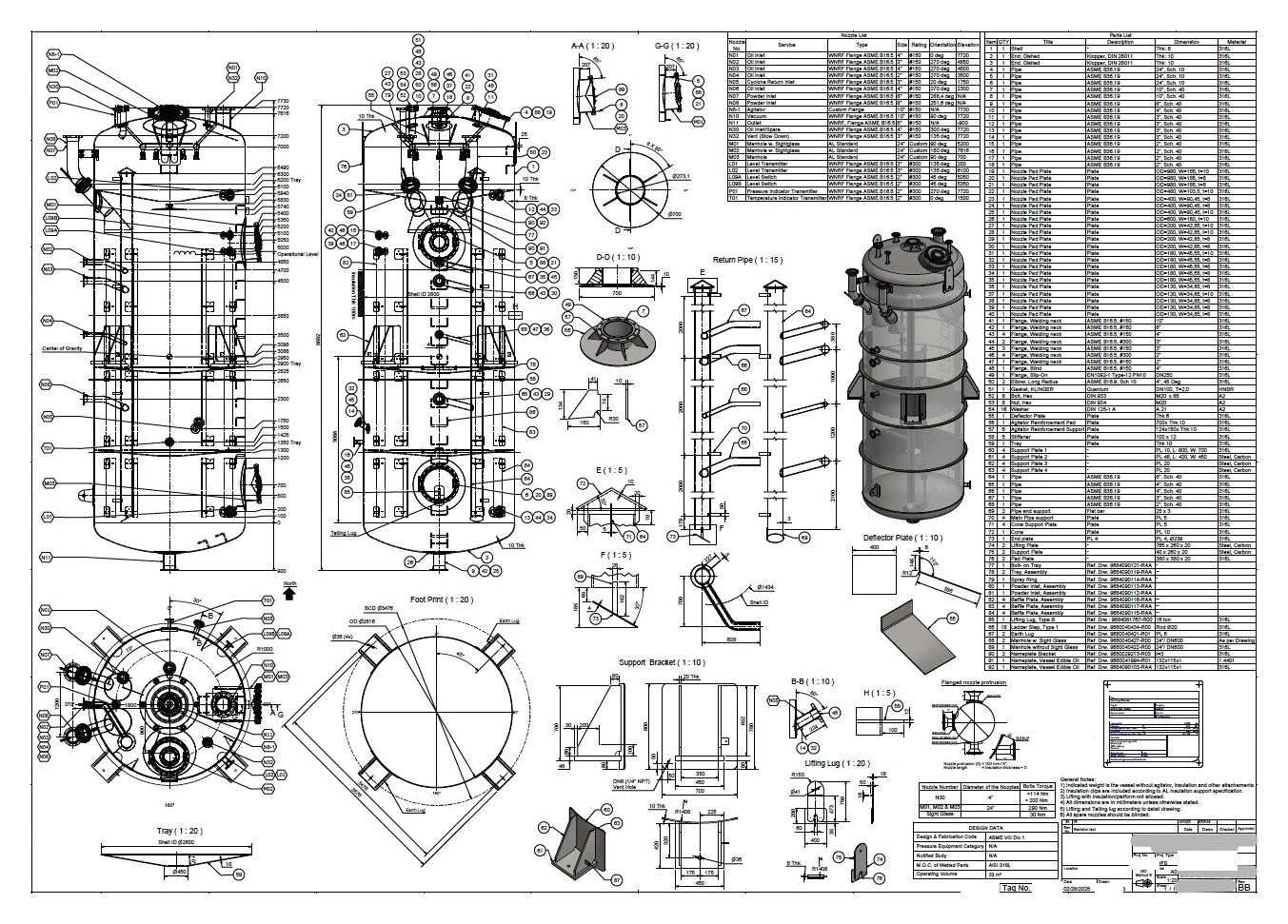

Drawings ready for the shop floor
A full general arrangement, sections, nozzle list and BOM, straight from the model.
