Electric scooter, rebuilt part by part
A production e-scooter, rebuilt in Inventor down to the last screw.

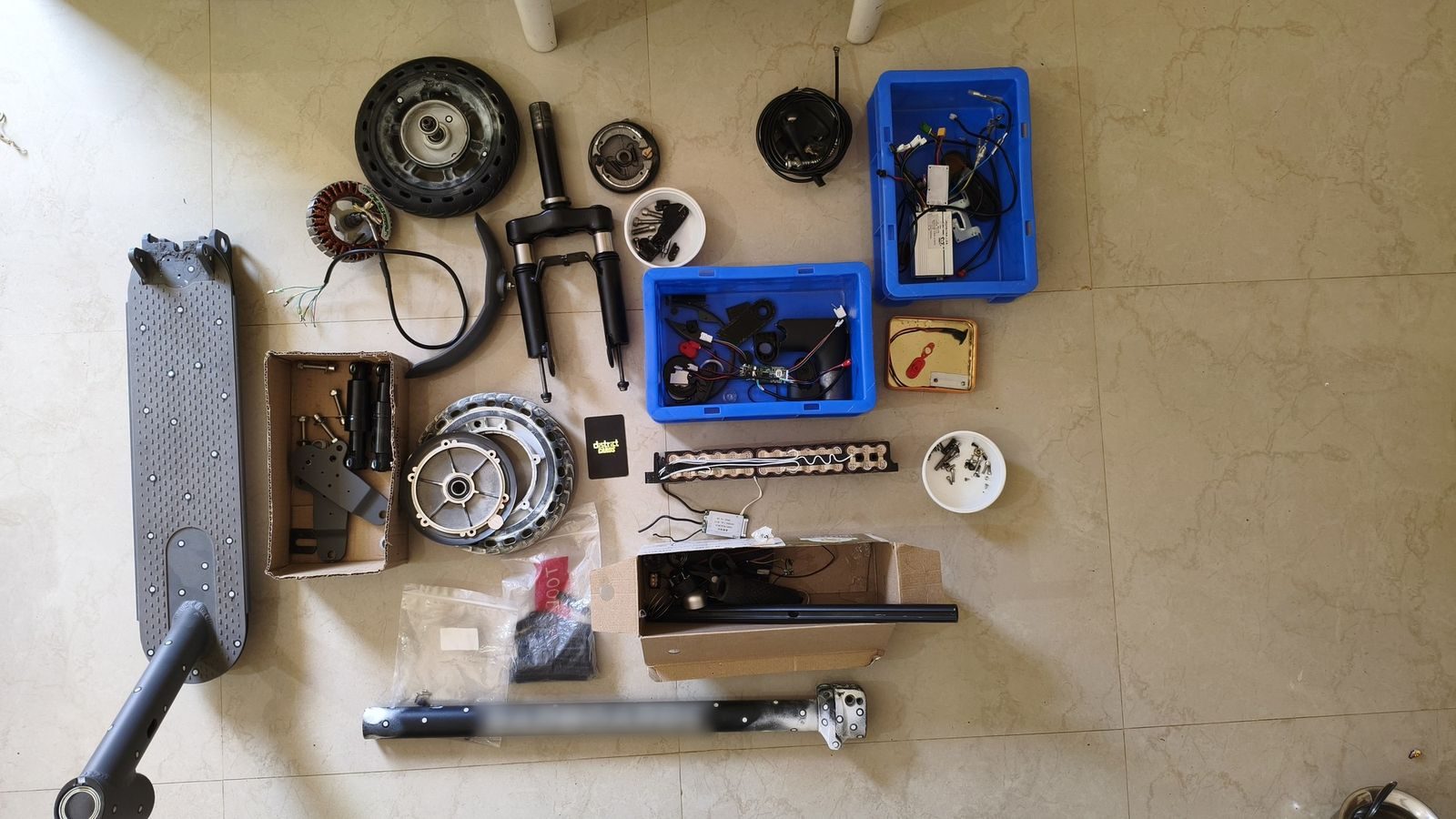

We took apart a Xiaomi Mijia-type scooter, one of the most common on city streets, and rebuilt every part, fastener, wire and mechanism in Inventor.
- Goal
- An editable digital twin of a real product.
- Deliverables
- Inventor assembly, drawings, BOM, renders and animations.
- 336parts, each modeled natively
- 1,064instances in the full assembly
- 30nested subassemblies
- 26components laser scanned
- 0.05–0.2mmmaximum deviation from the scans
- 46connections, traced through 90 wires
- 21.86mof wire, routed wire by wire
- 250hfrom teardown to the last render
Specification
Performance
- Top speed
- 25km/h
- Range
- 30km
- Rated power
- 250W
- Battery
- 36V · 8.0Ah
- Payload
- 120kg
- Weight
- 12kg
Build
- Motor
- 350 W front hub
- Front suspension
- Spring fork
- Rear suspension
- Twin shocks
- Brake
- Rear drum
- Tires
- Airless PU
- Cells
- INR18650
- 998 × 448 × 1184mm

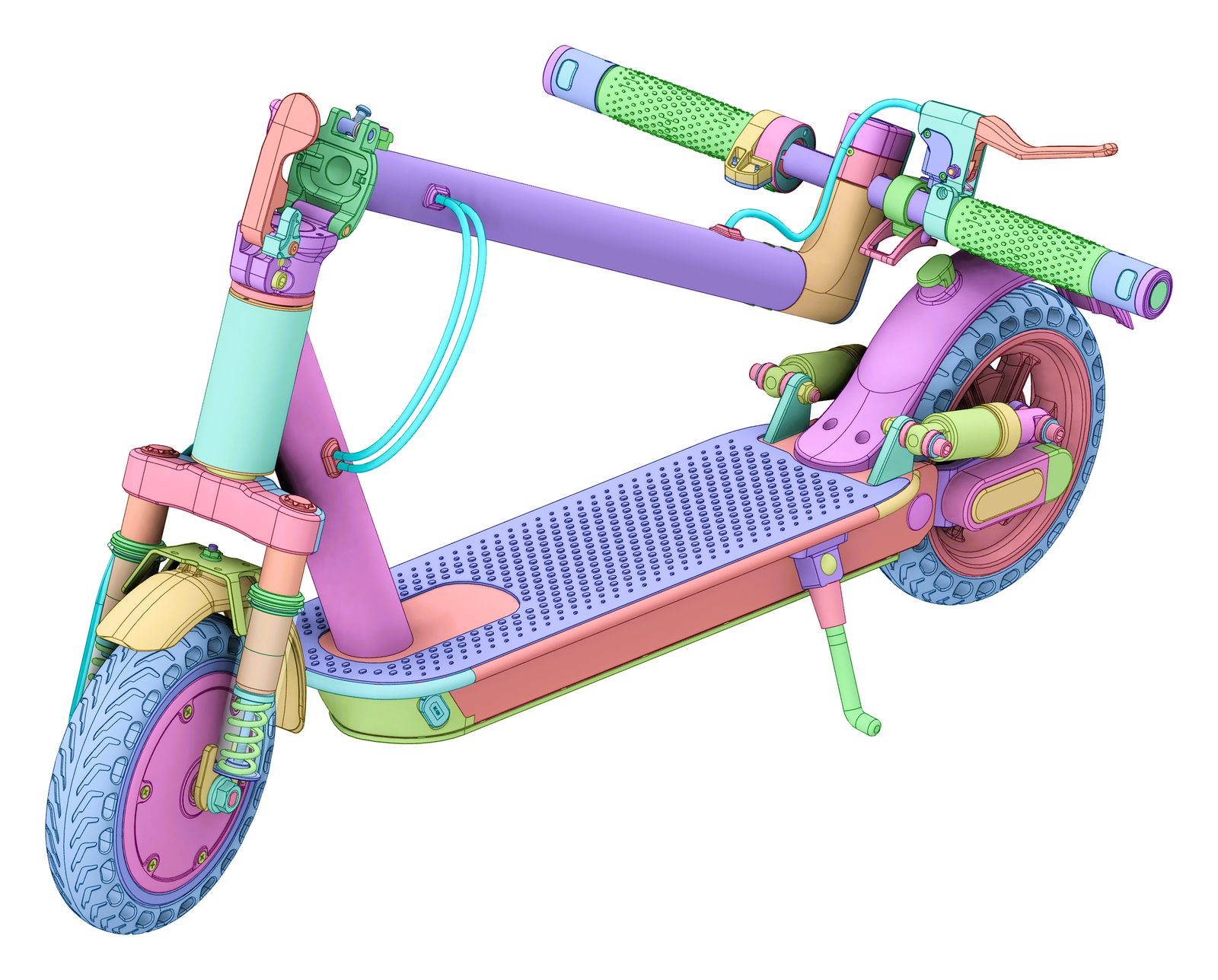

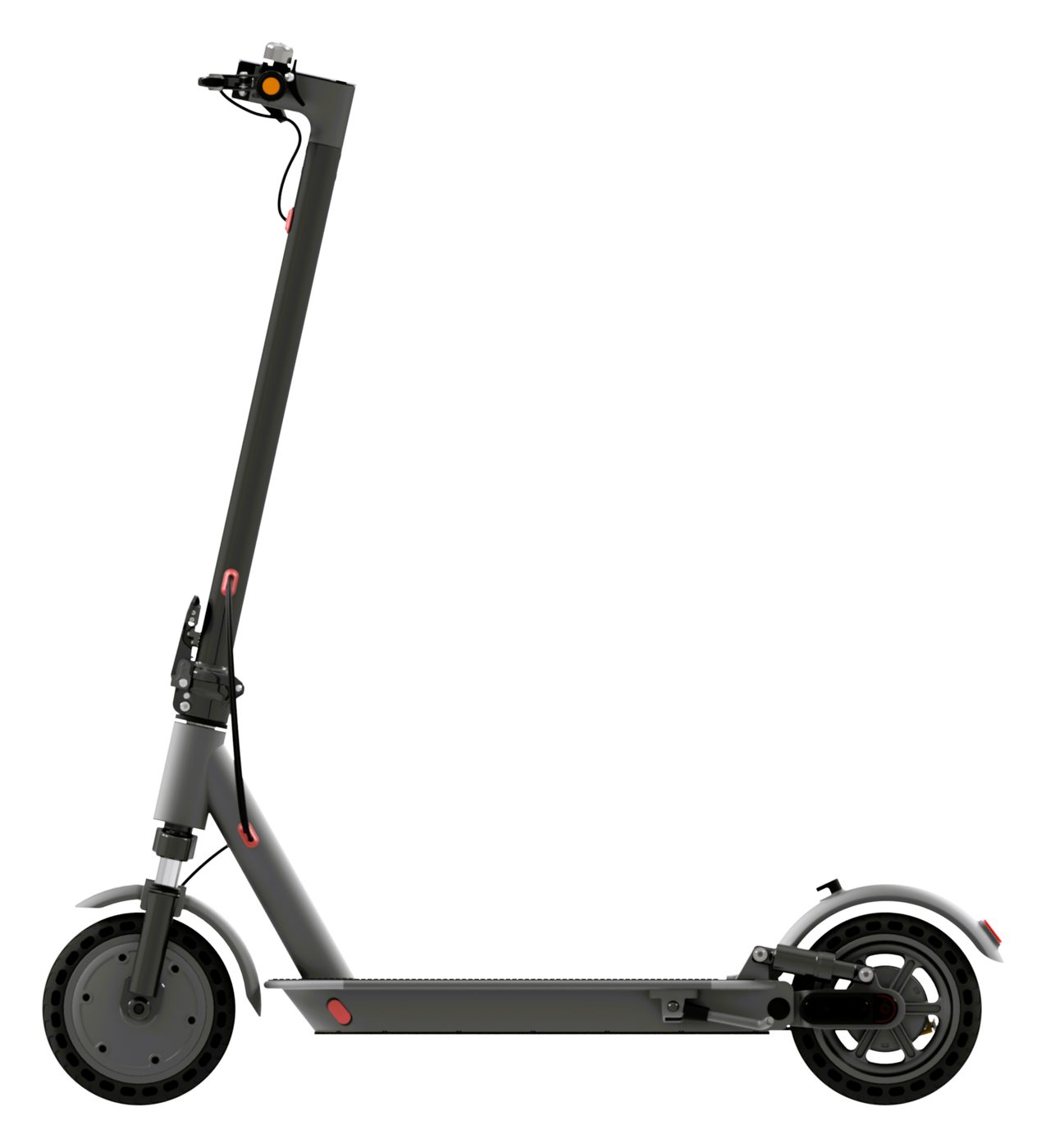

Every part, fully assembled
Exploded, one subassembly at a time

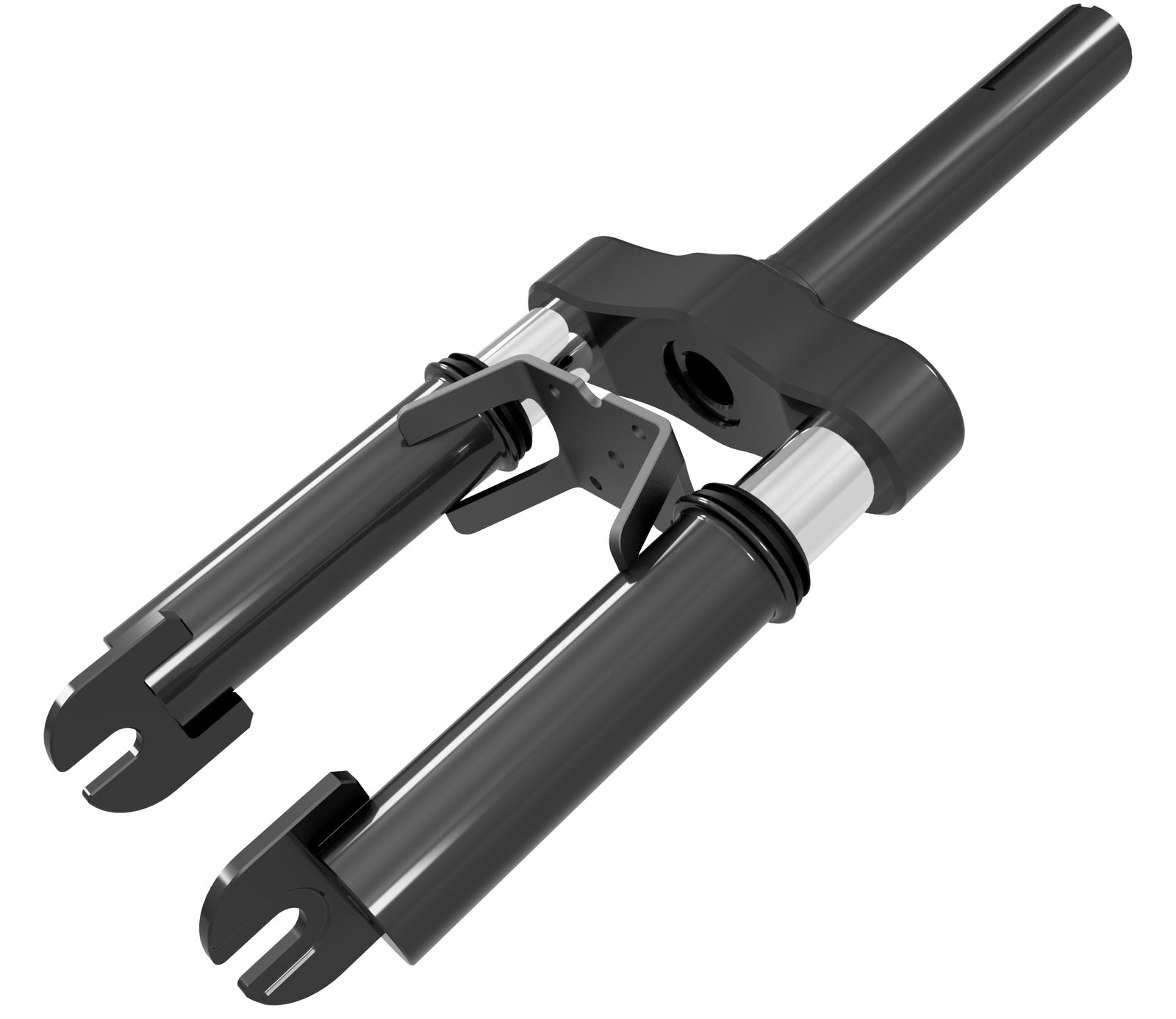

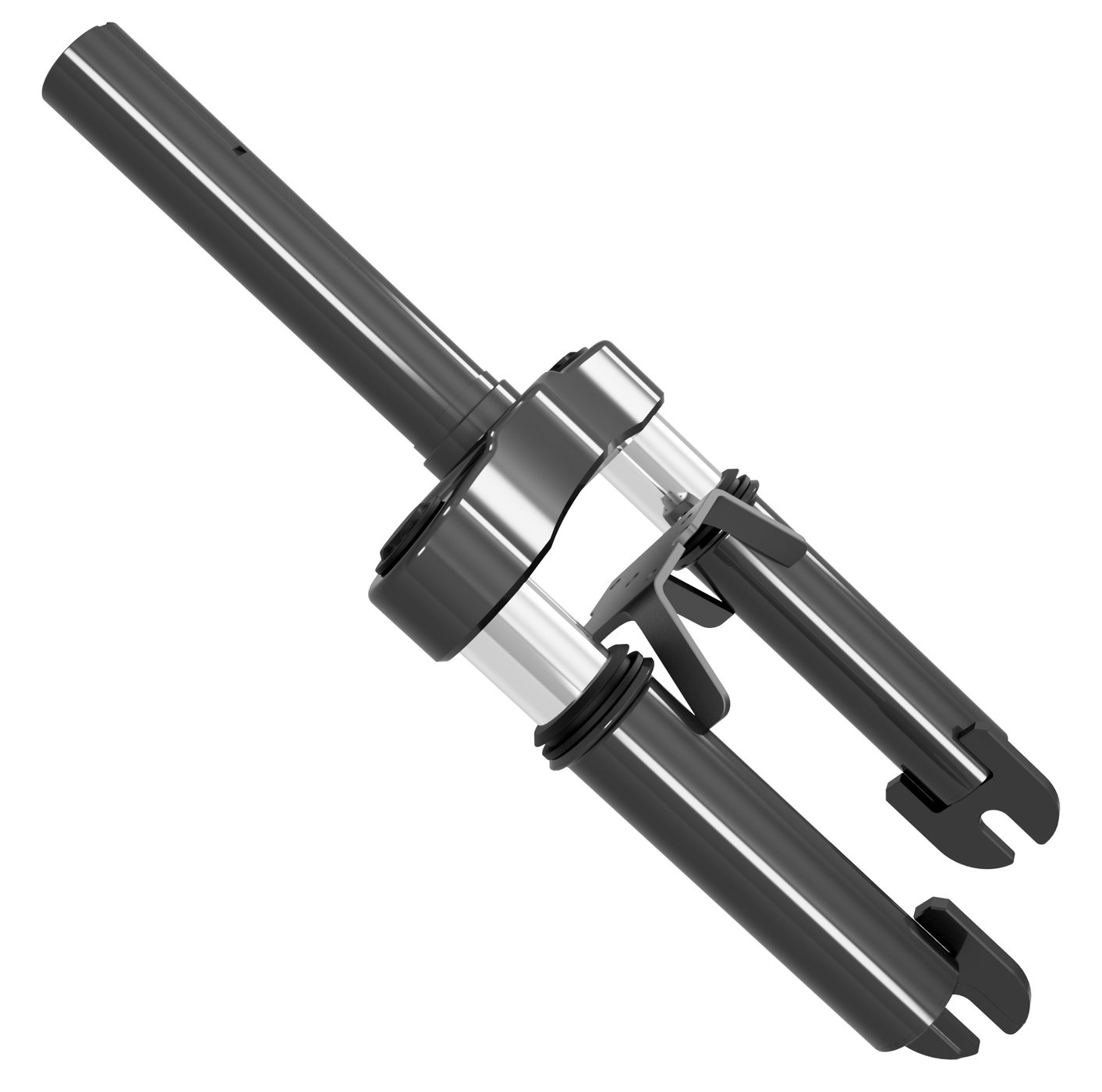

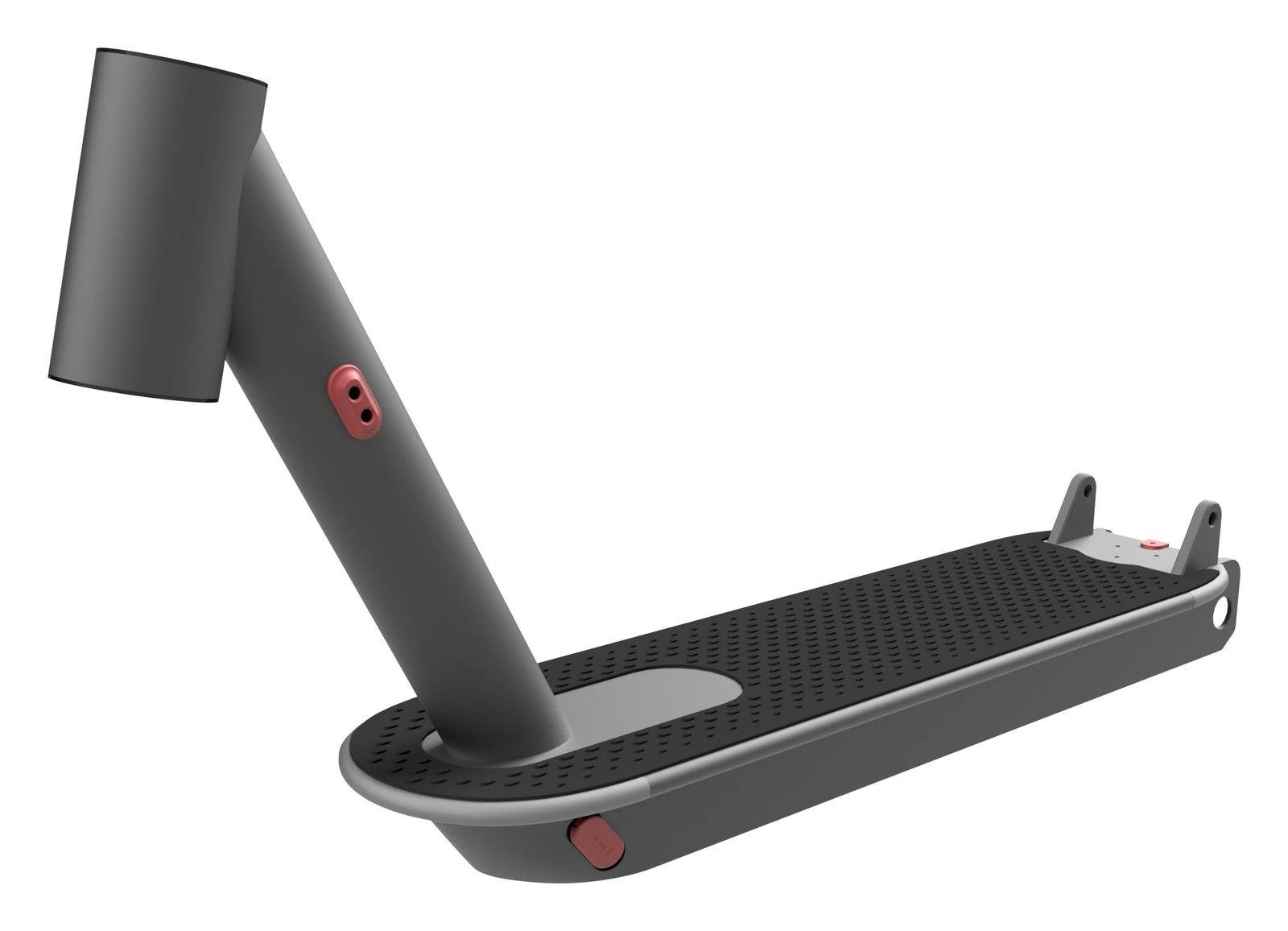

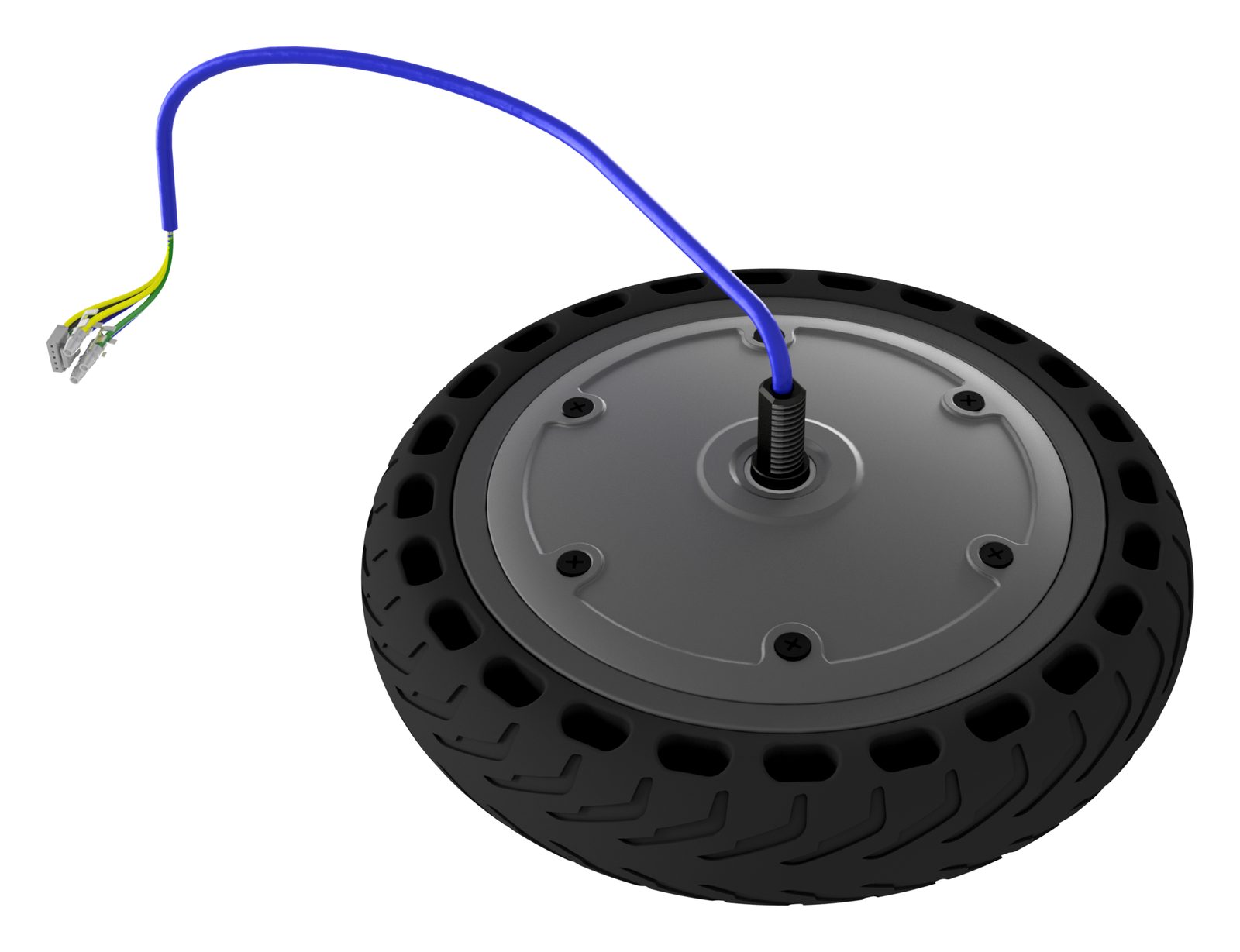

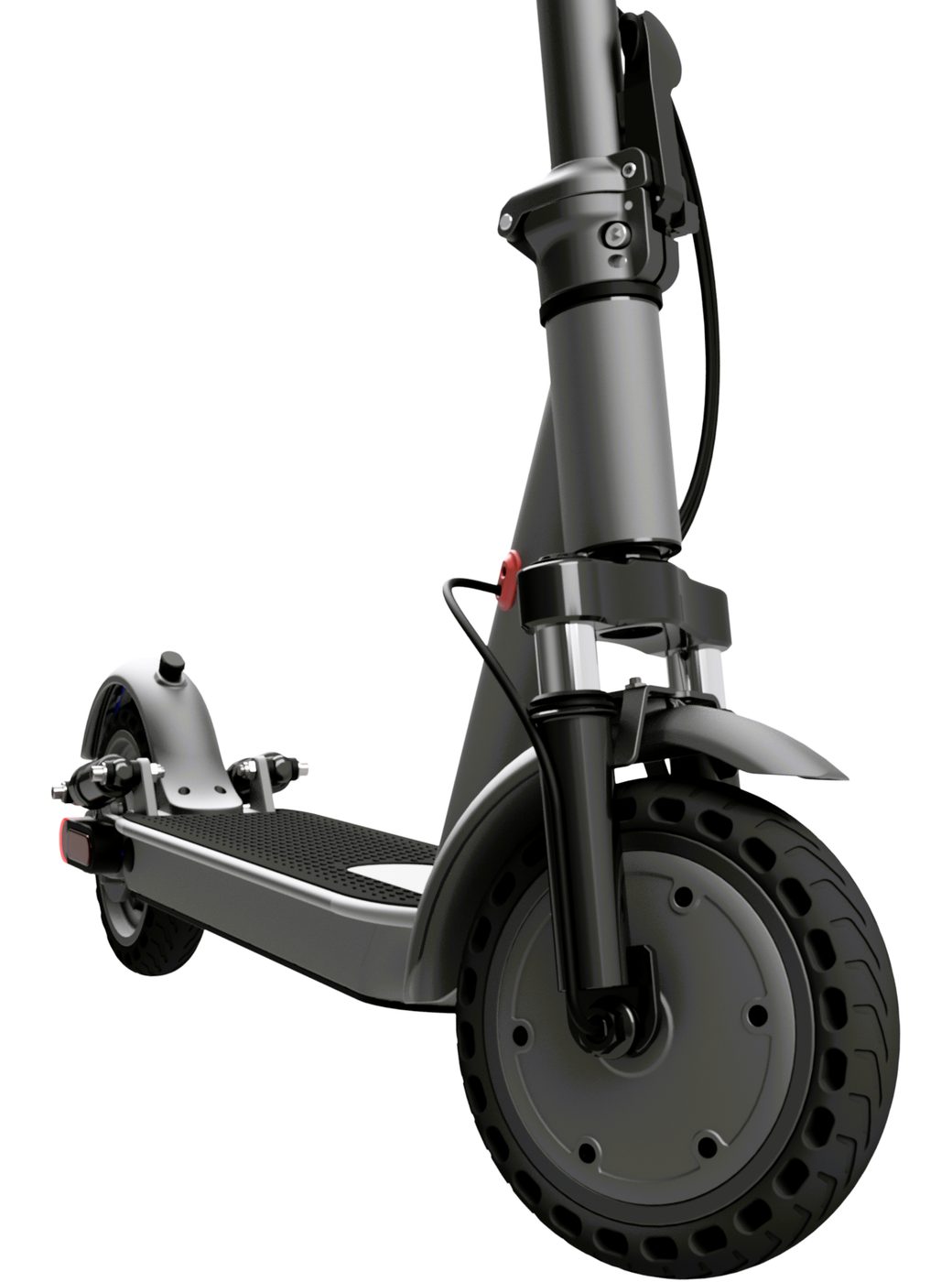

Each subassembly, rebuilt around how it actually works.

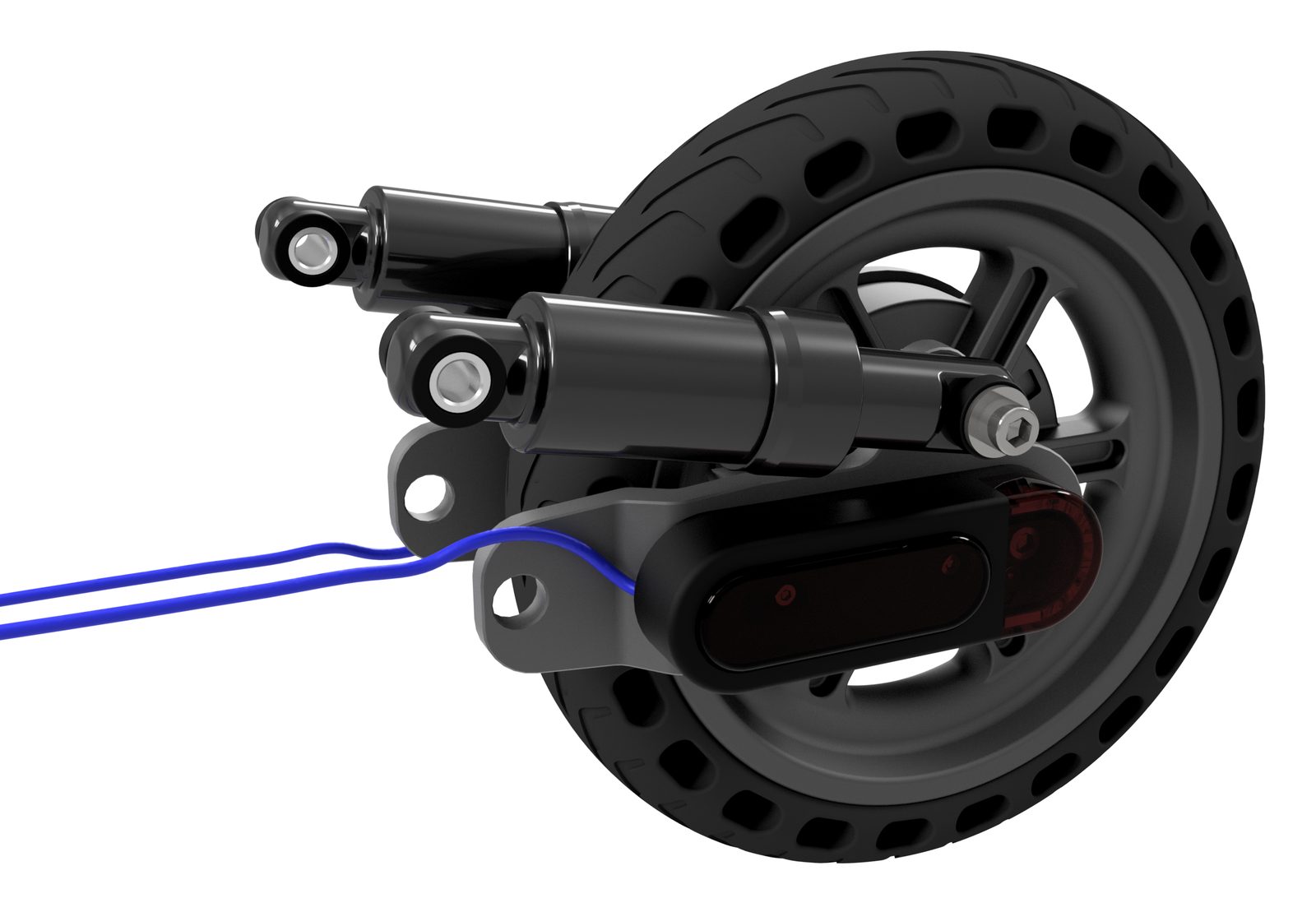

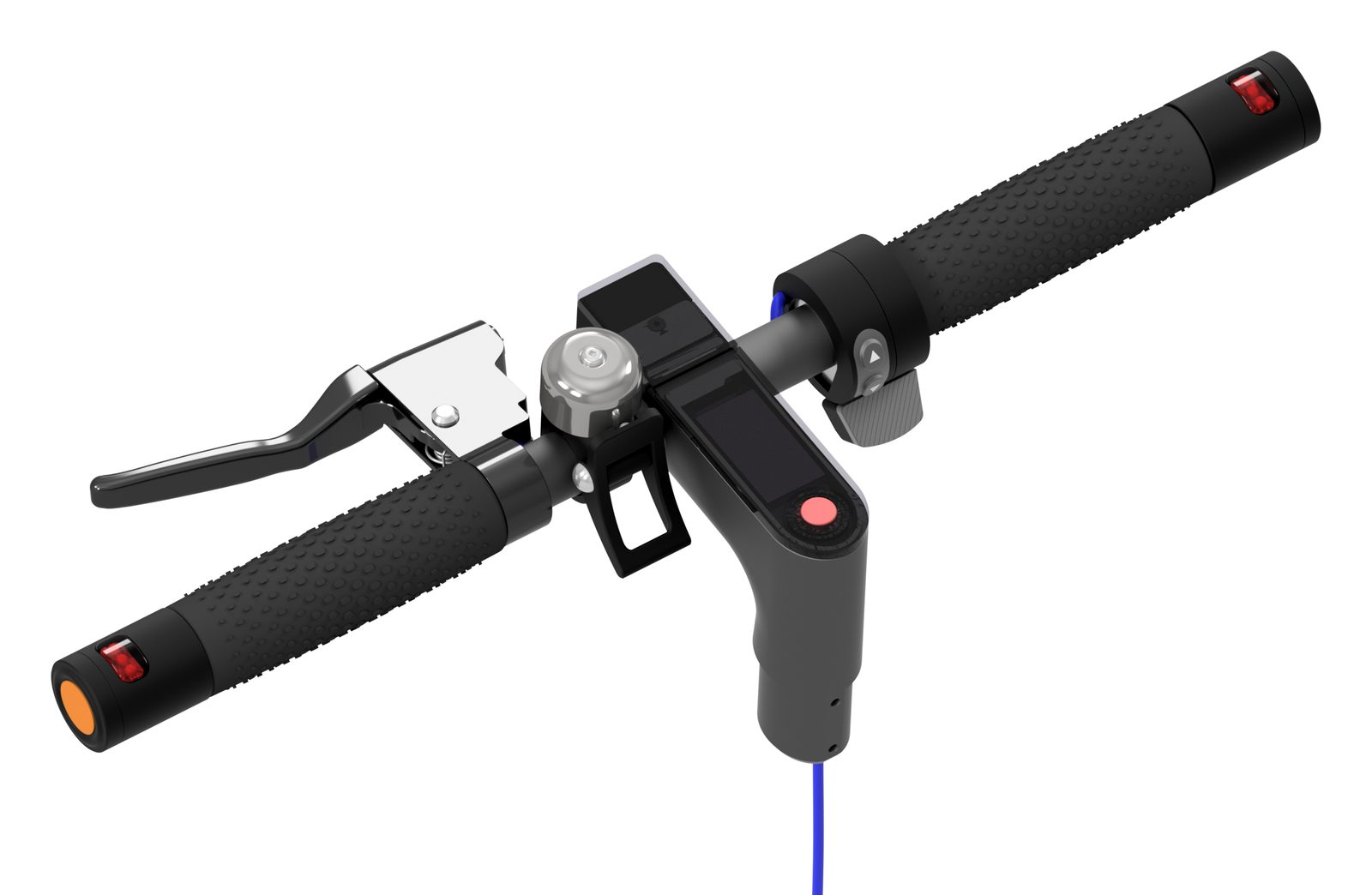

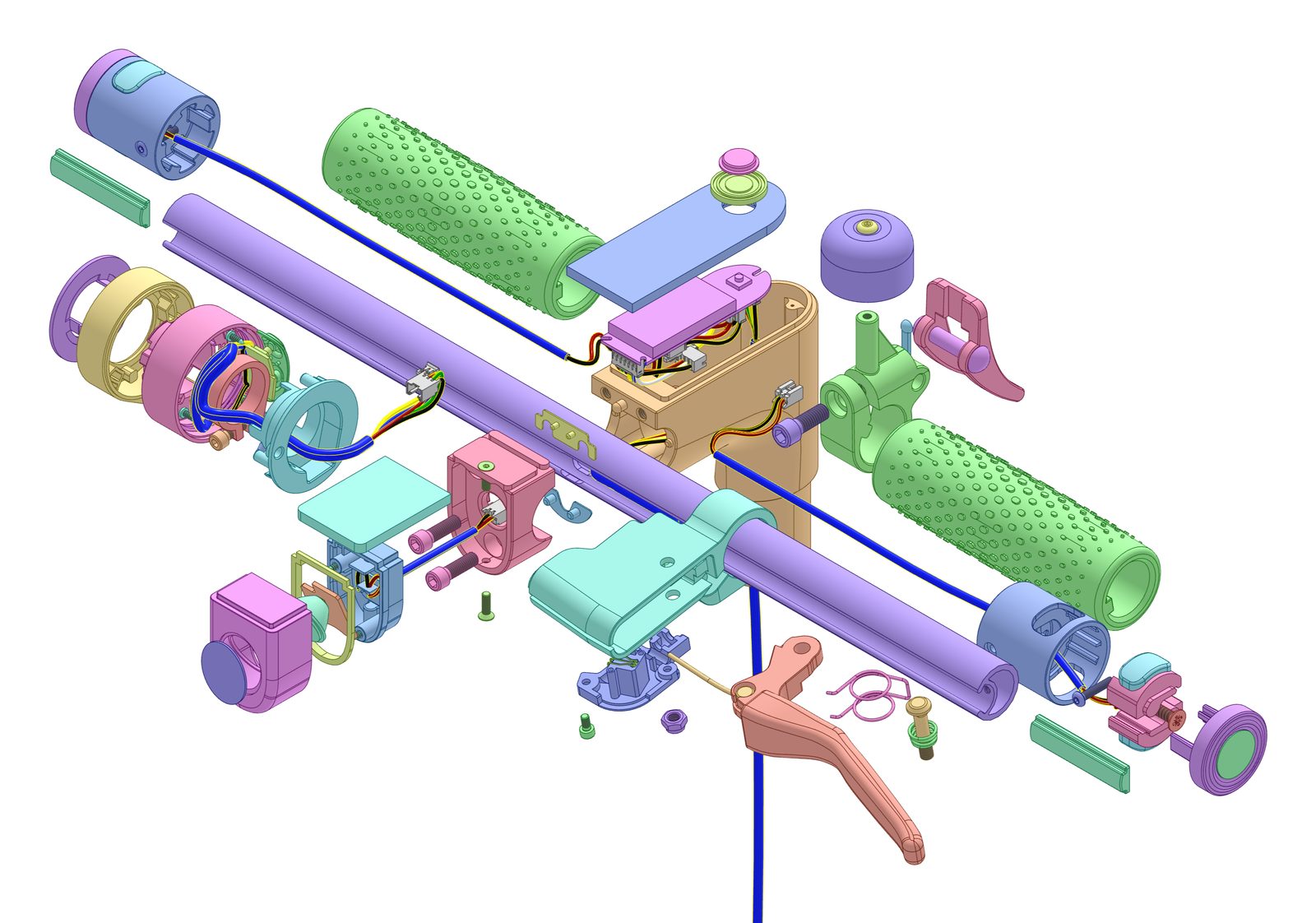

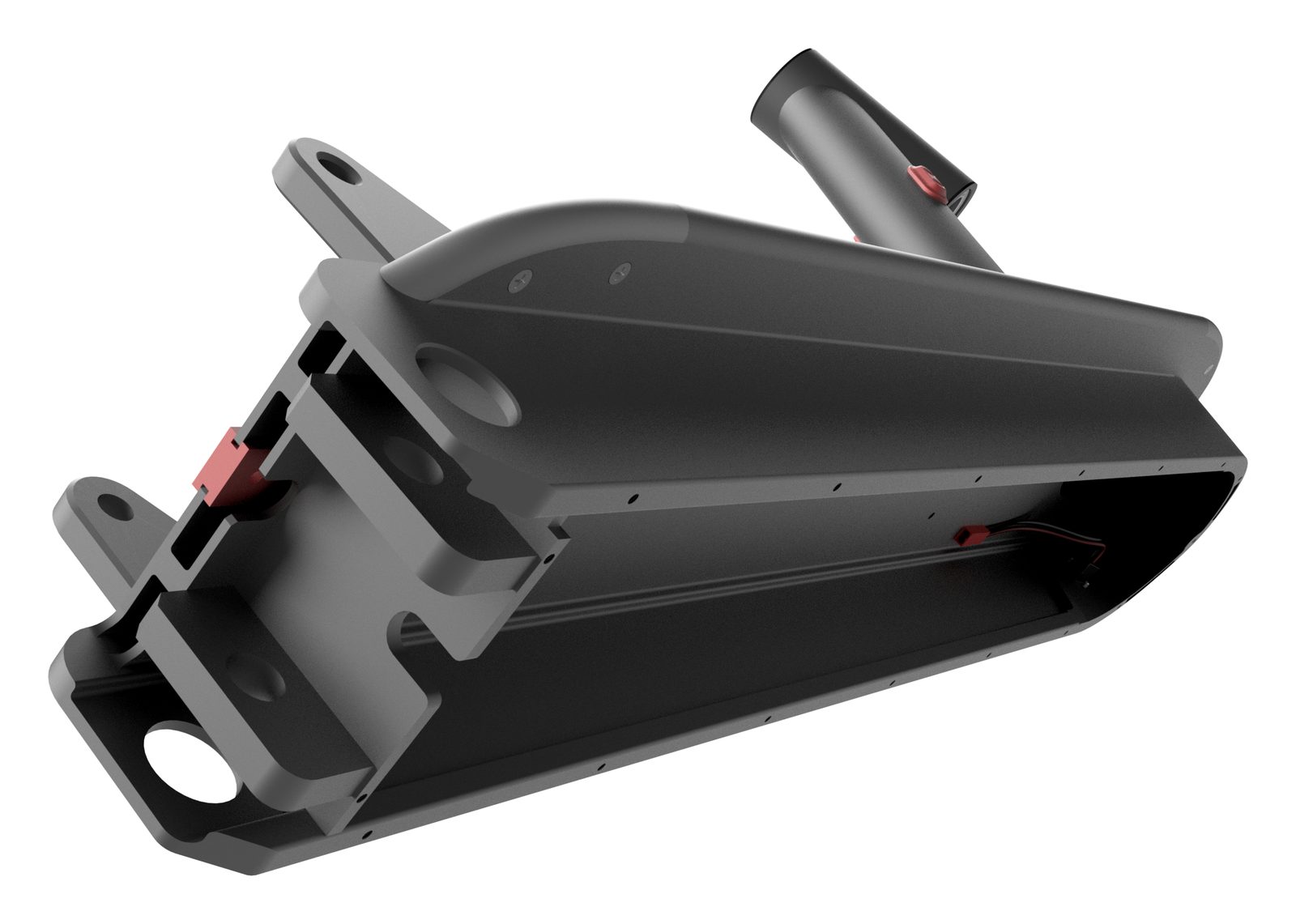

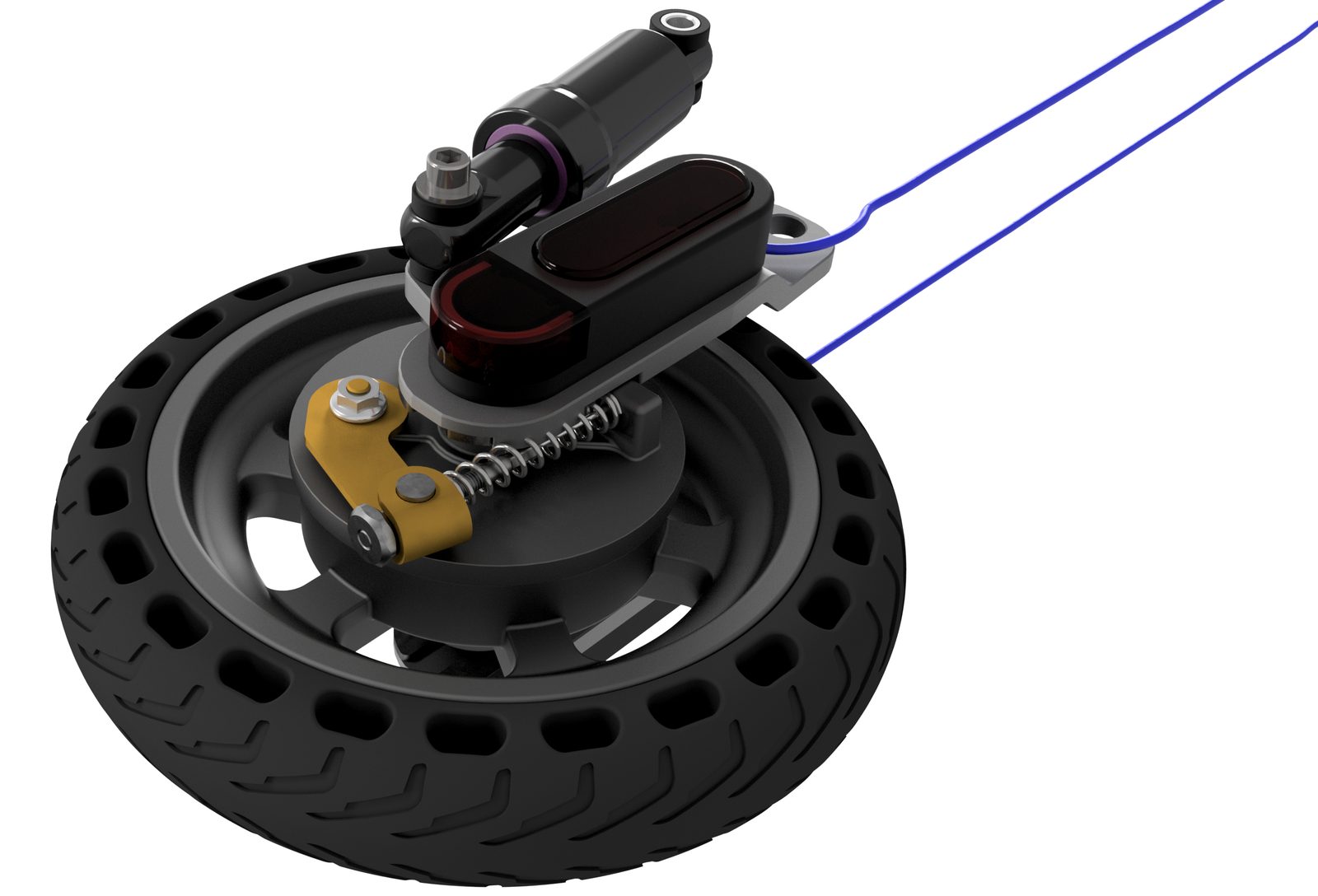

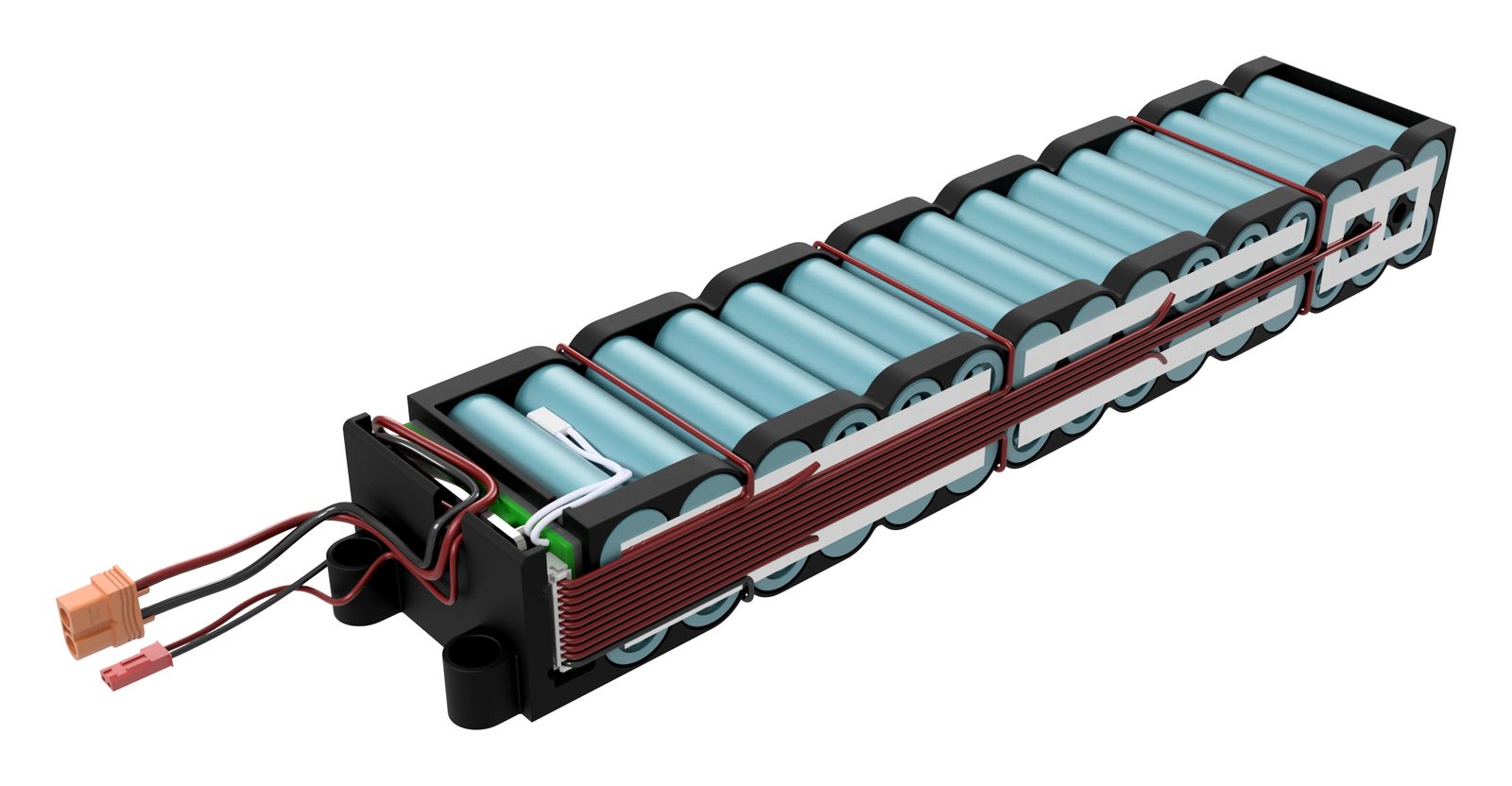

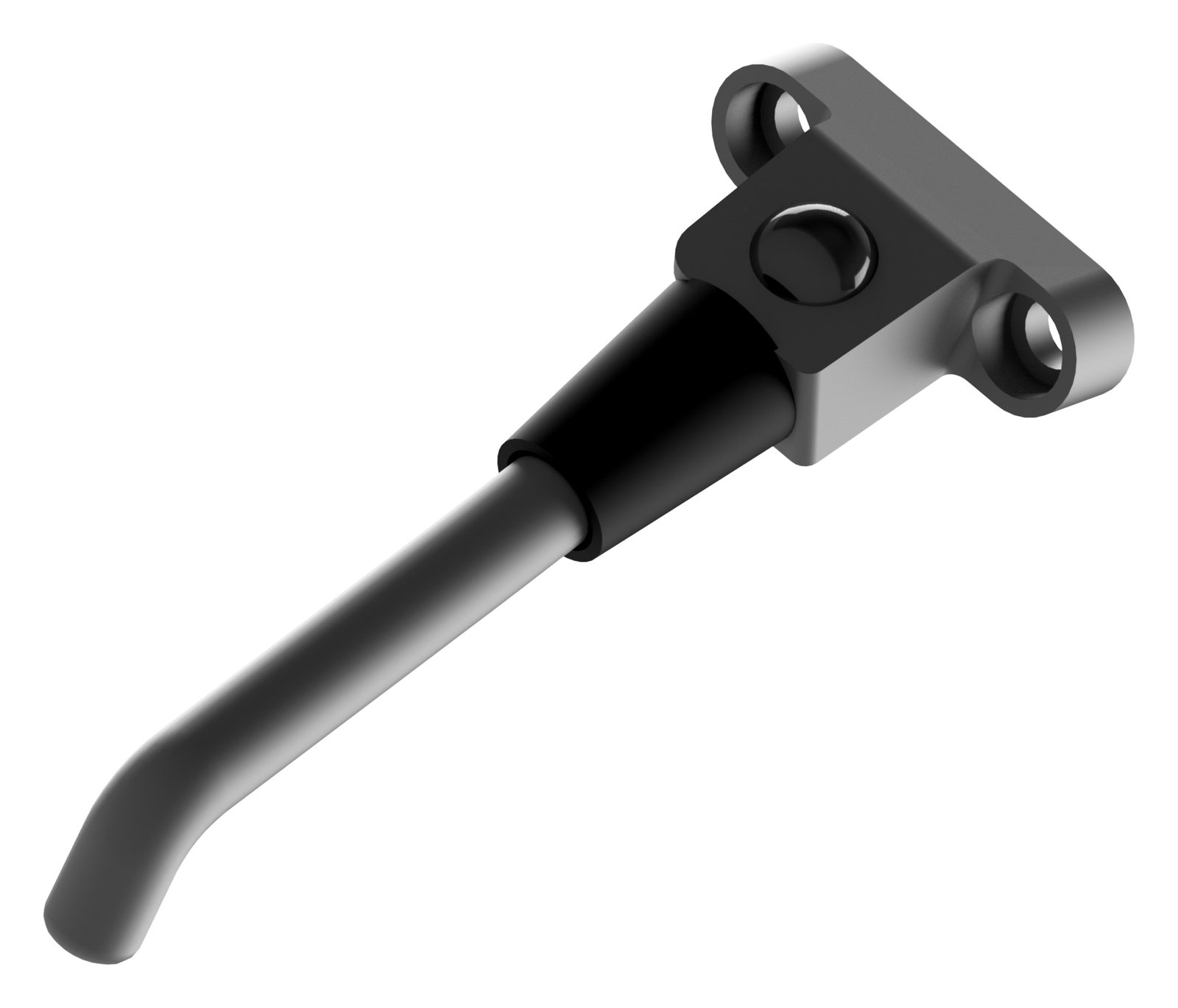

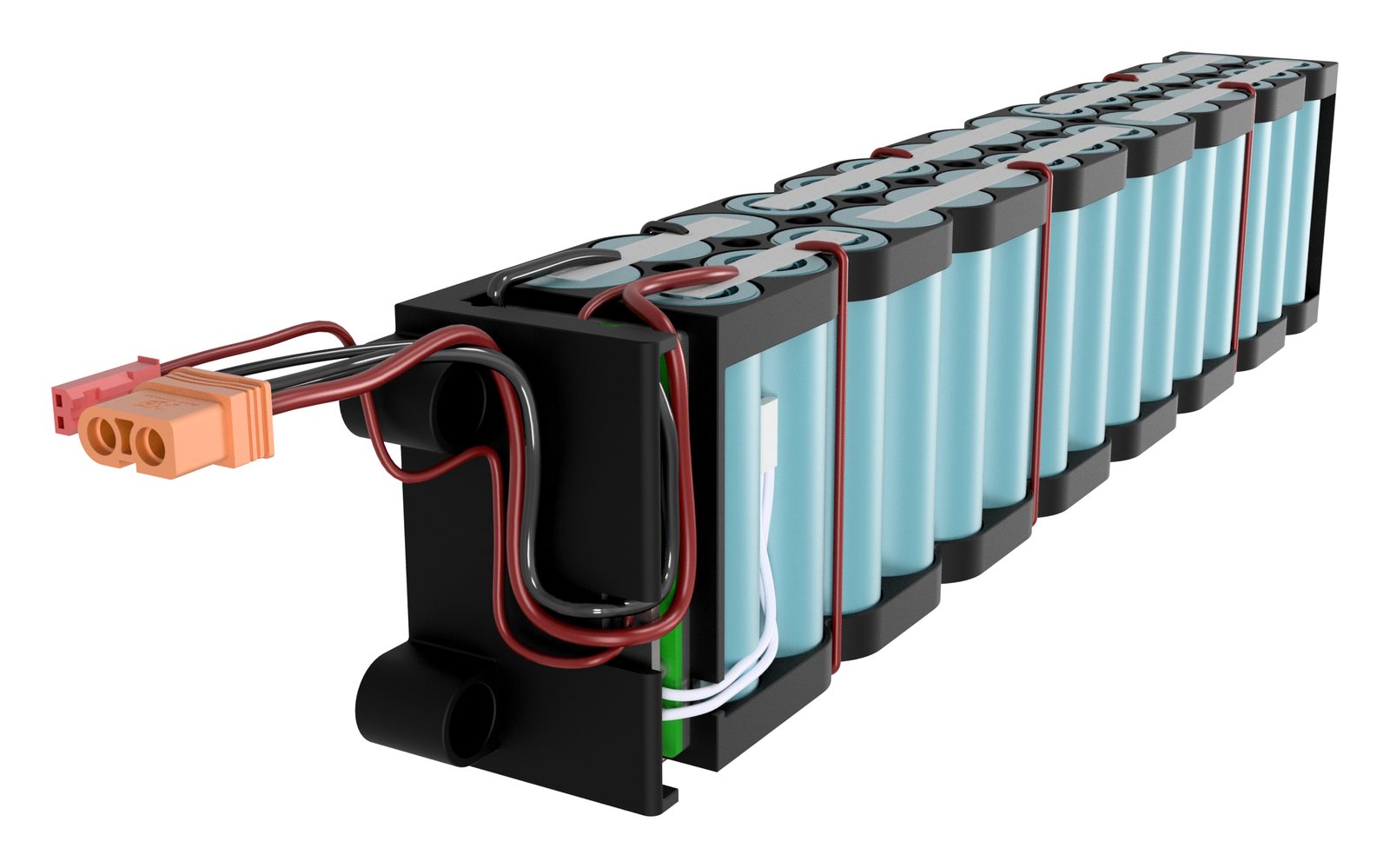

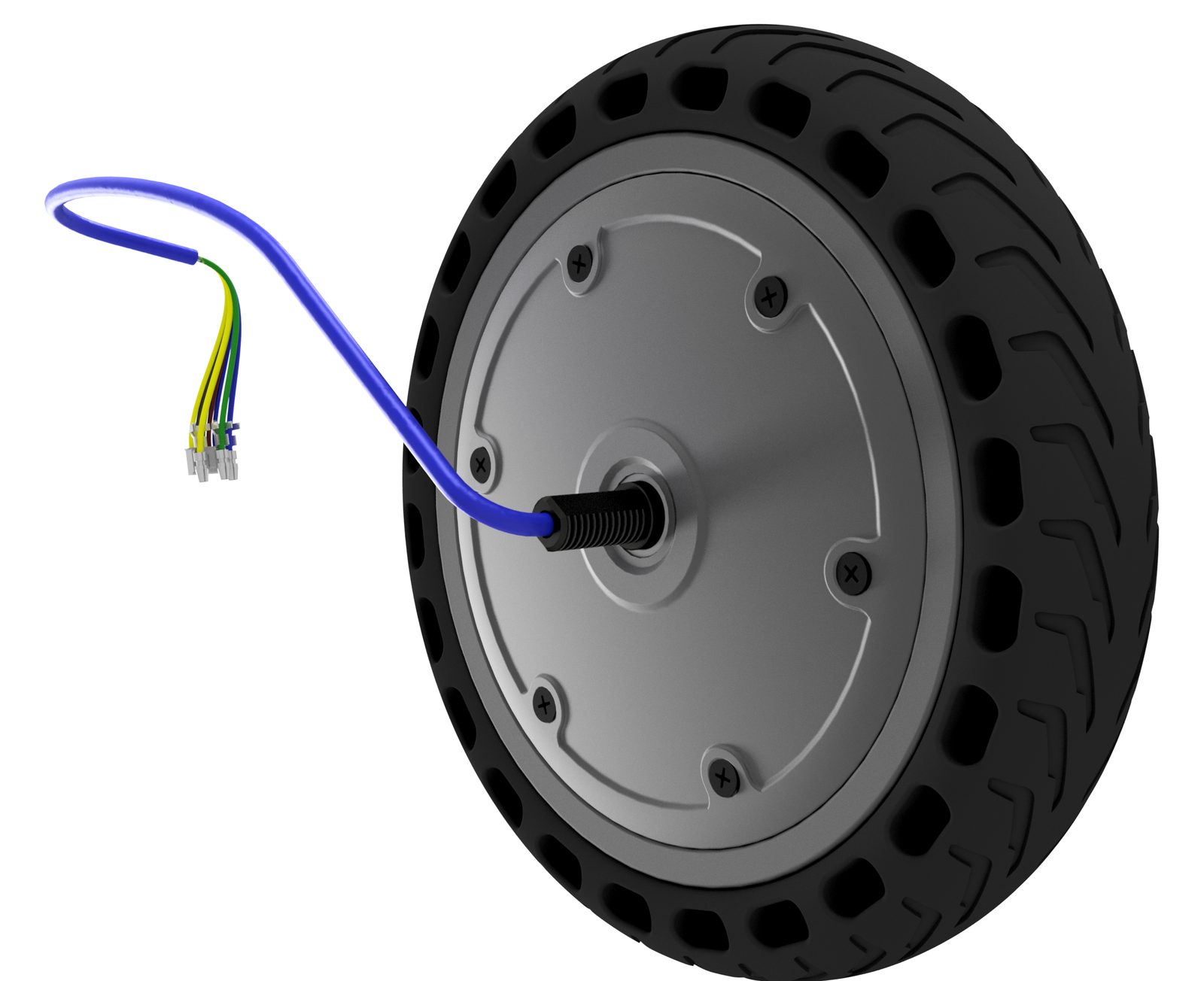

Subassembly renders

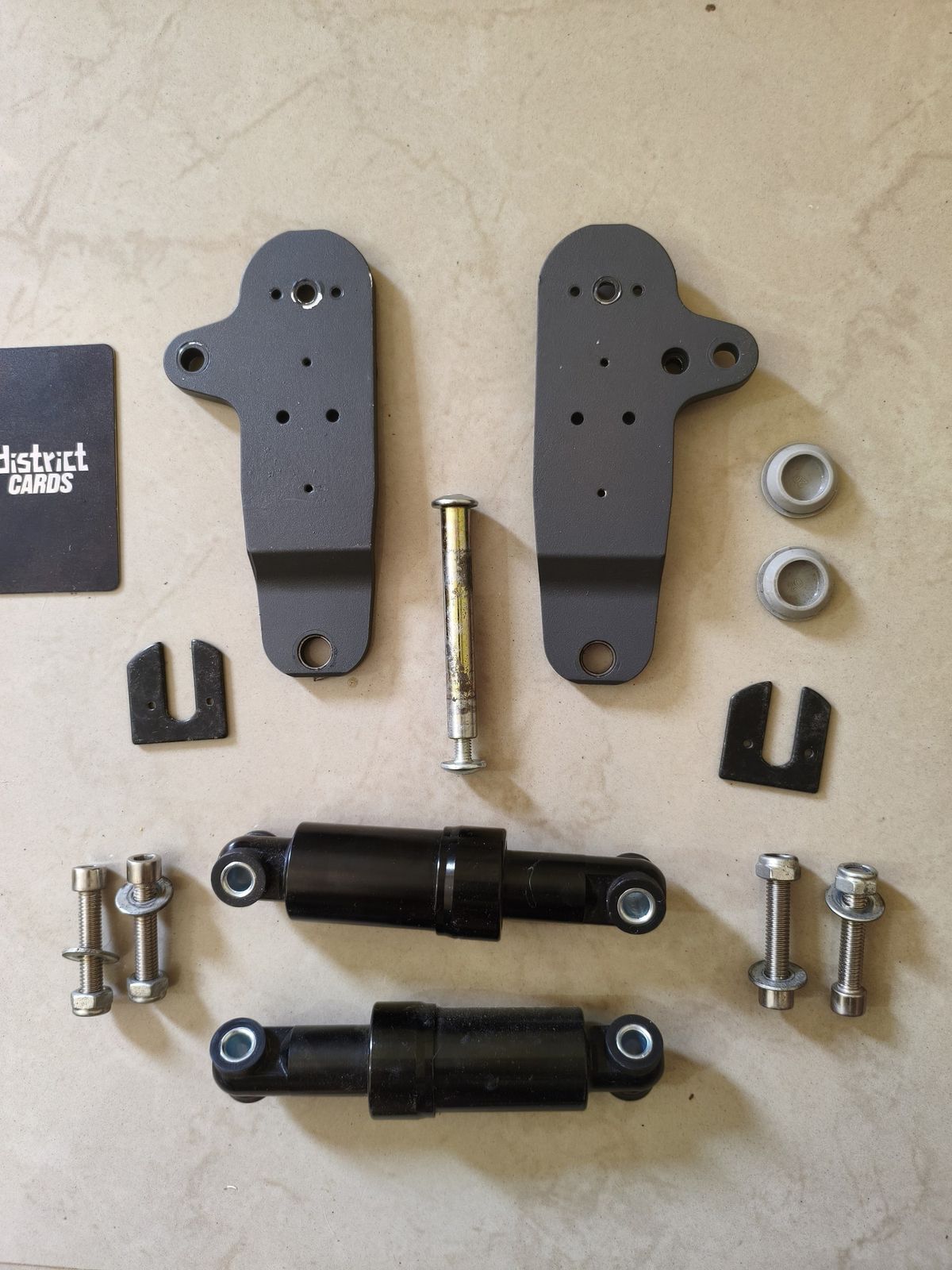

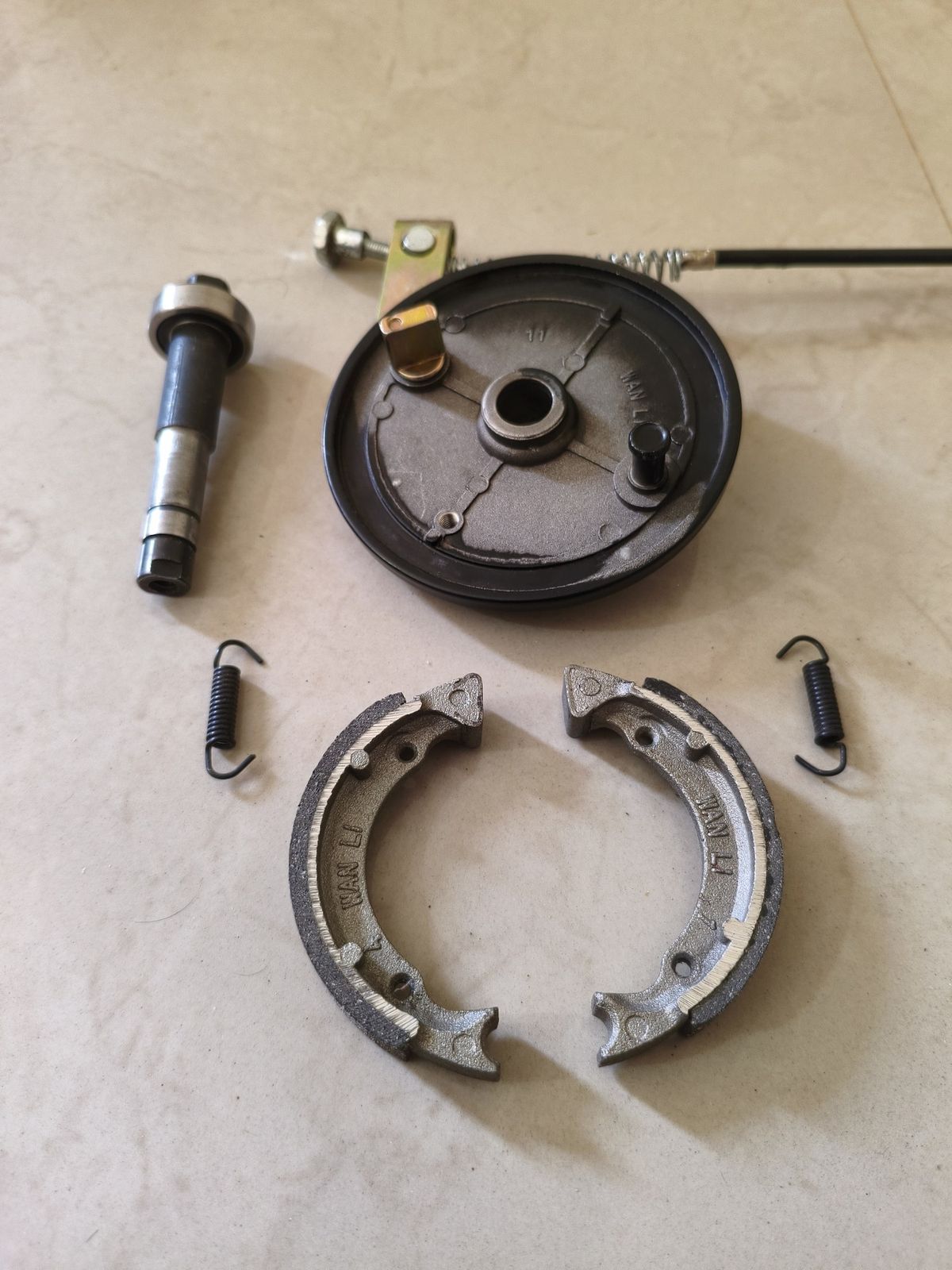

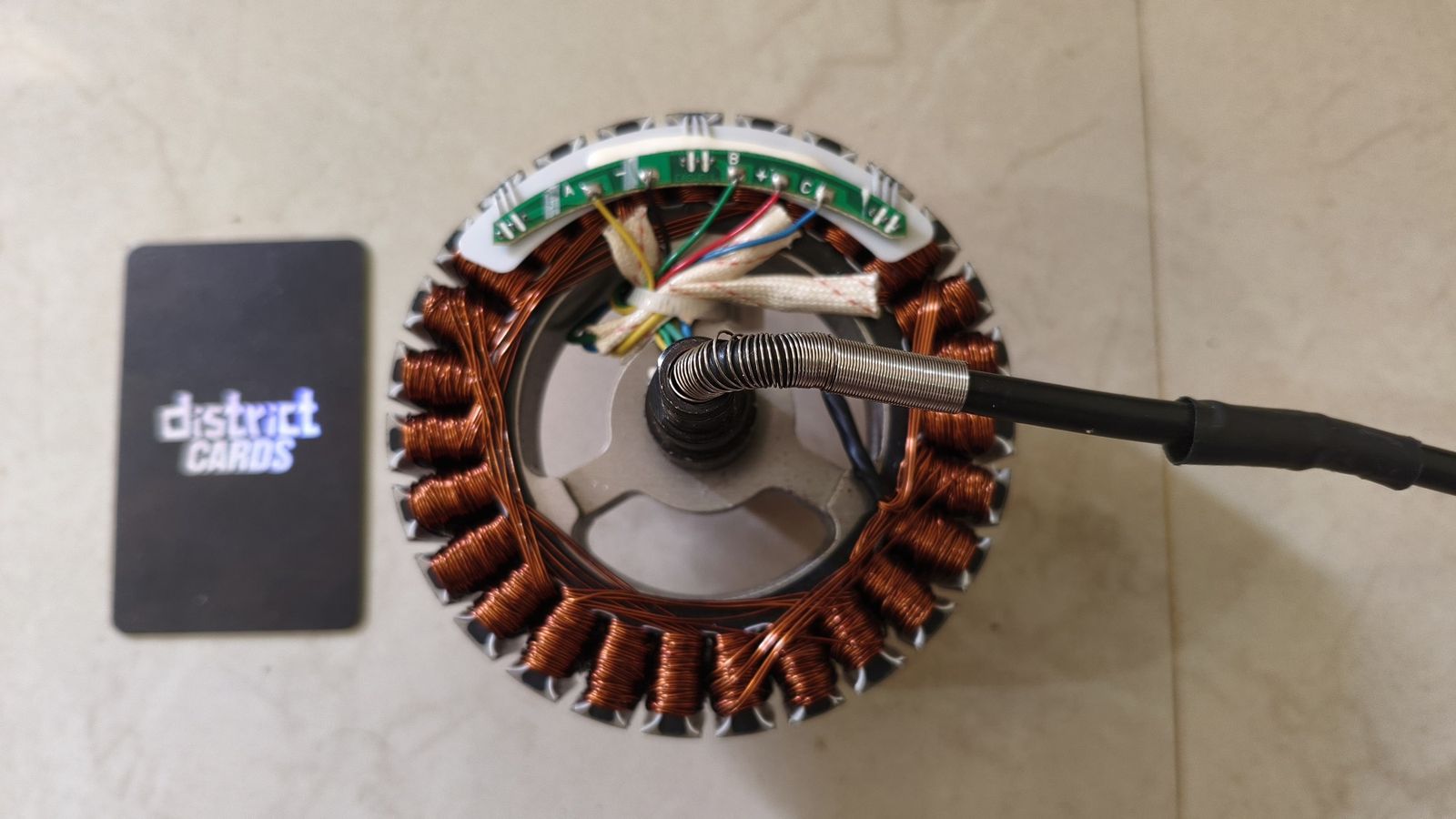

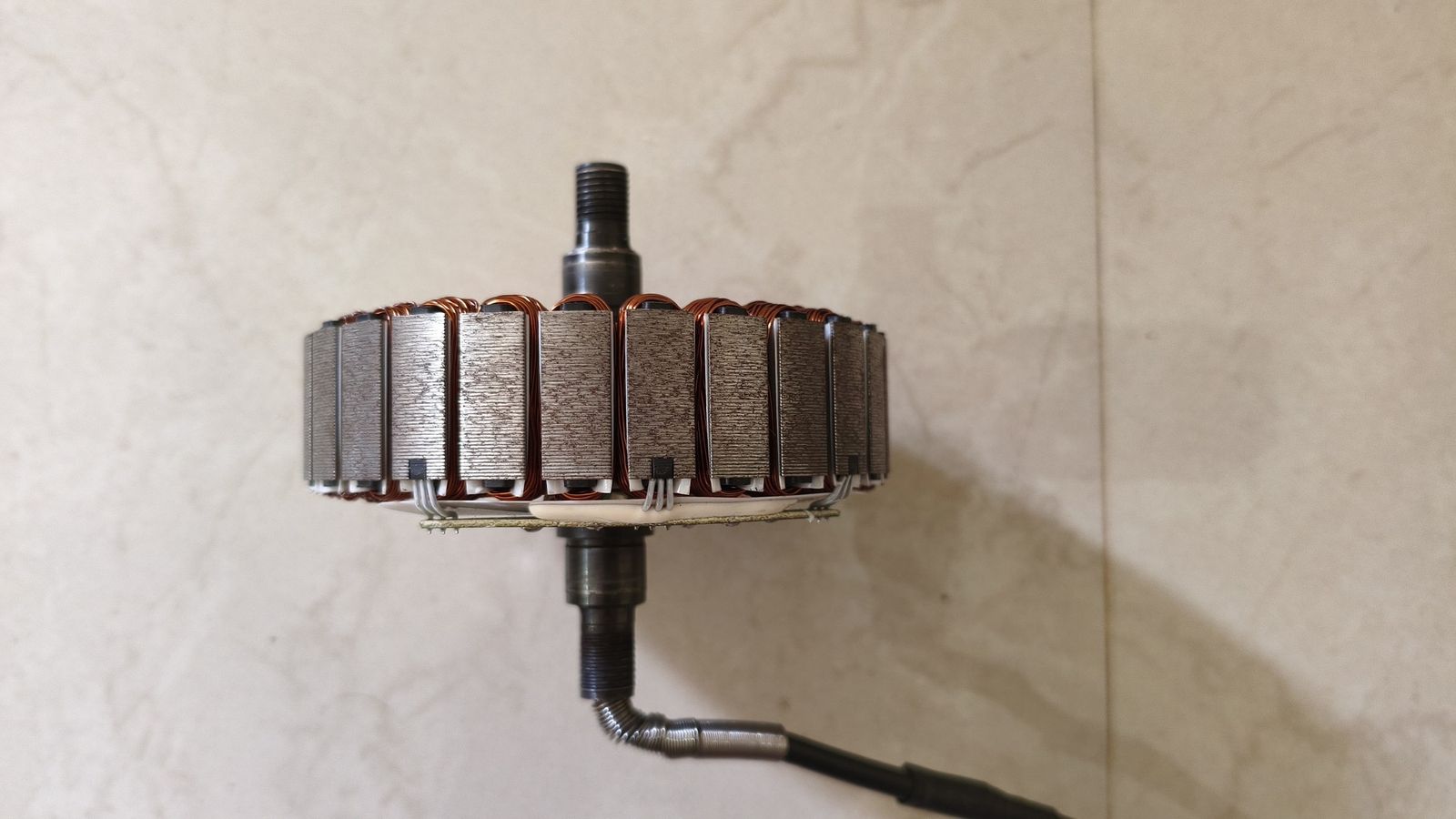

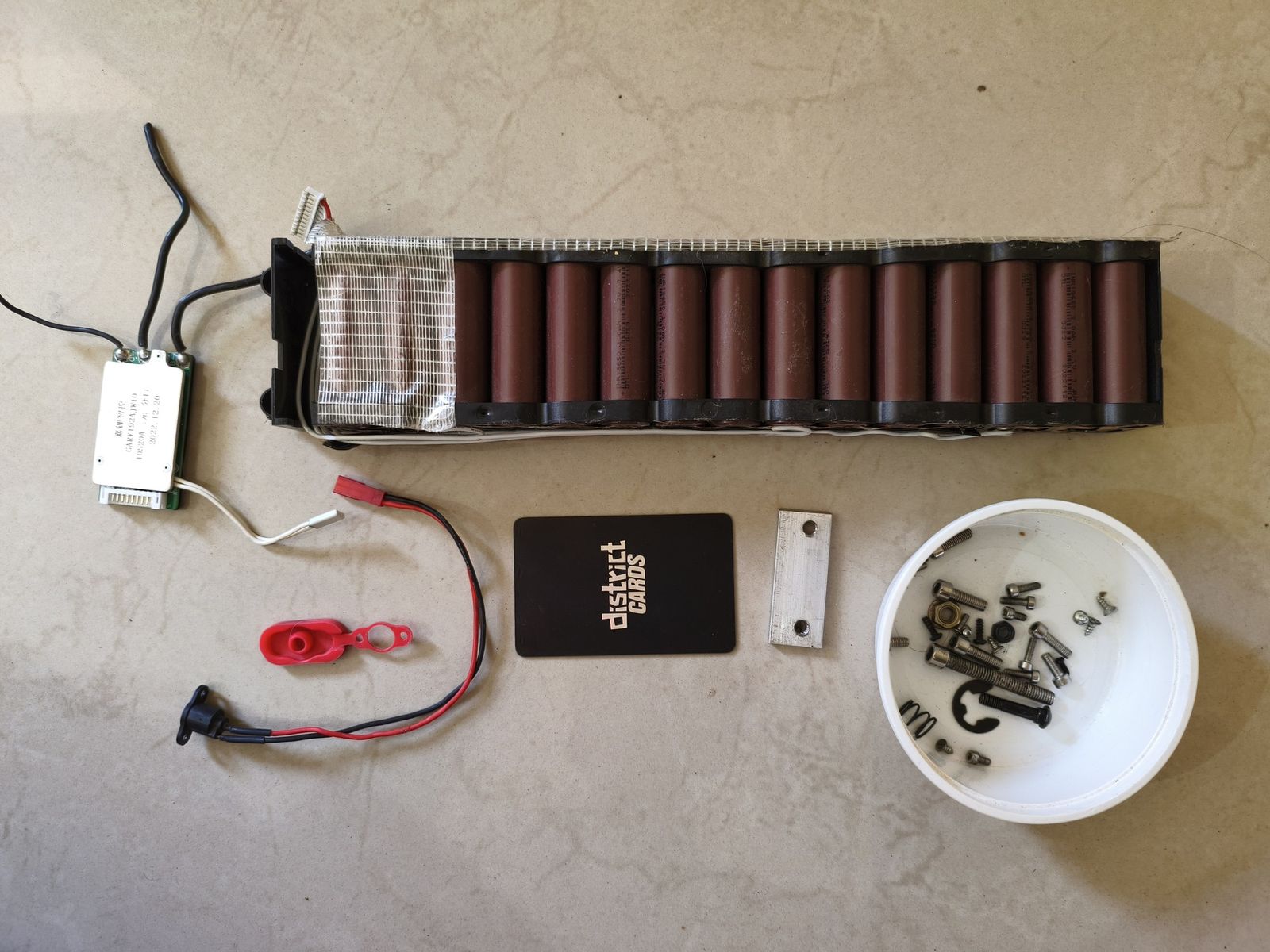

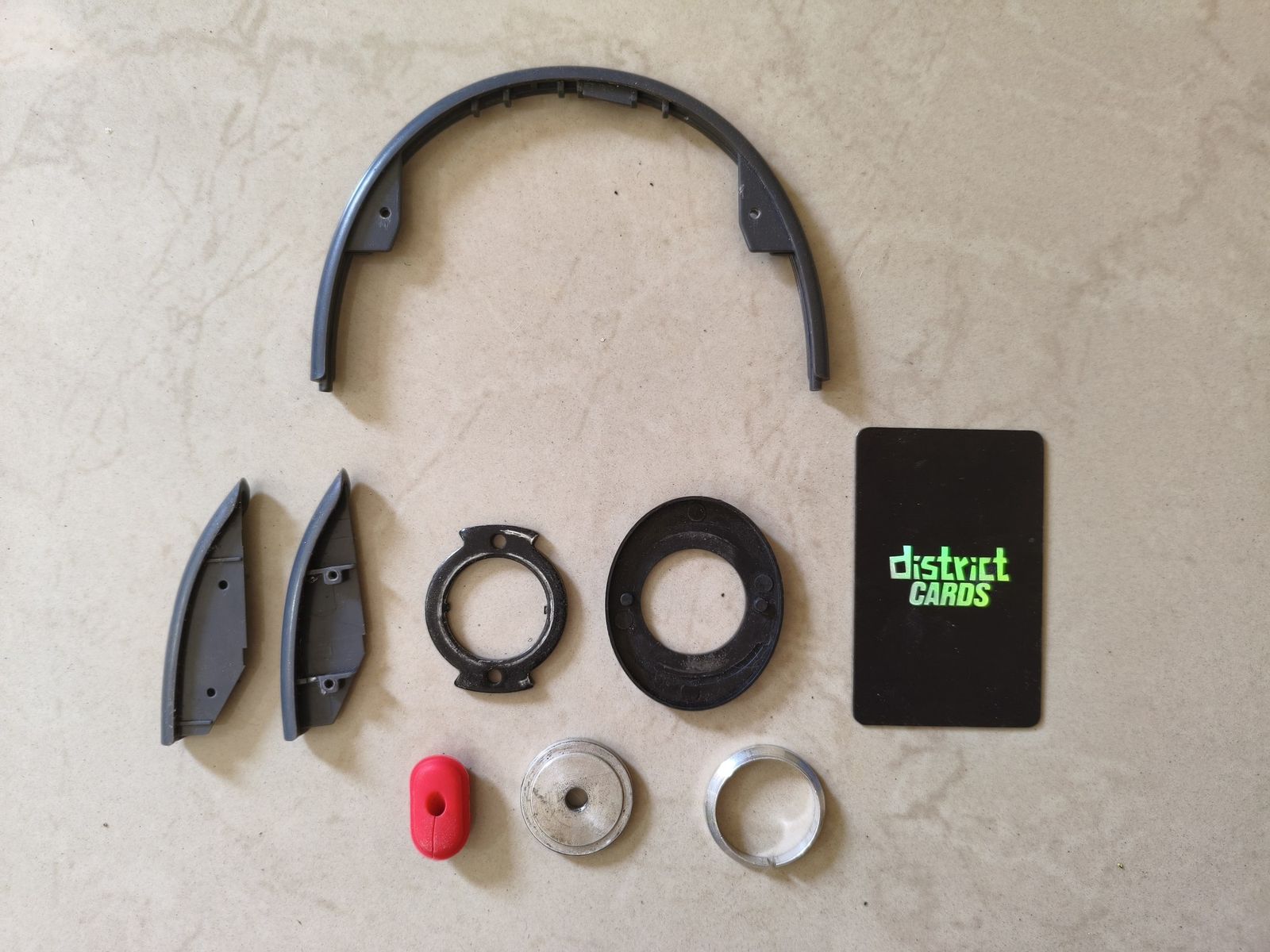

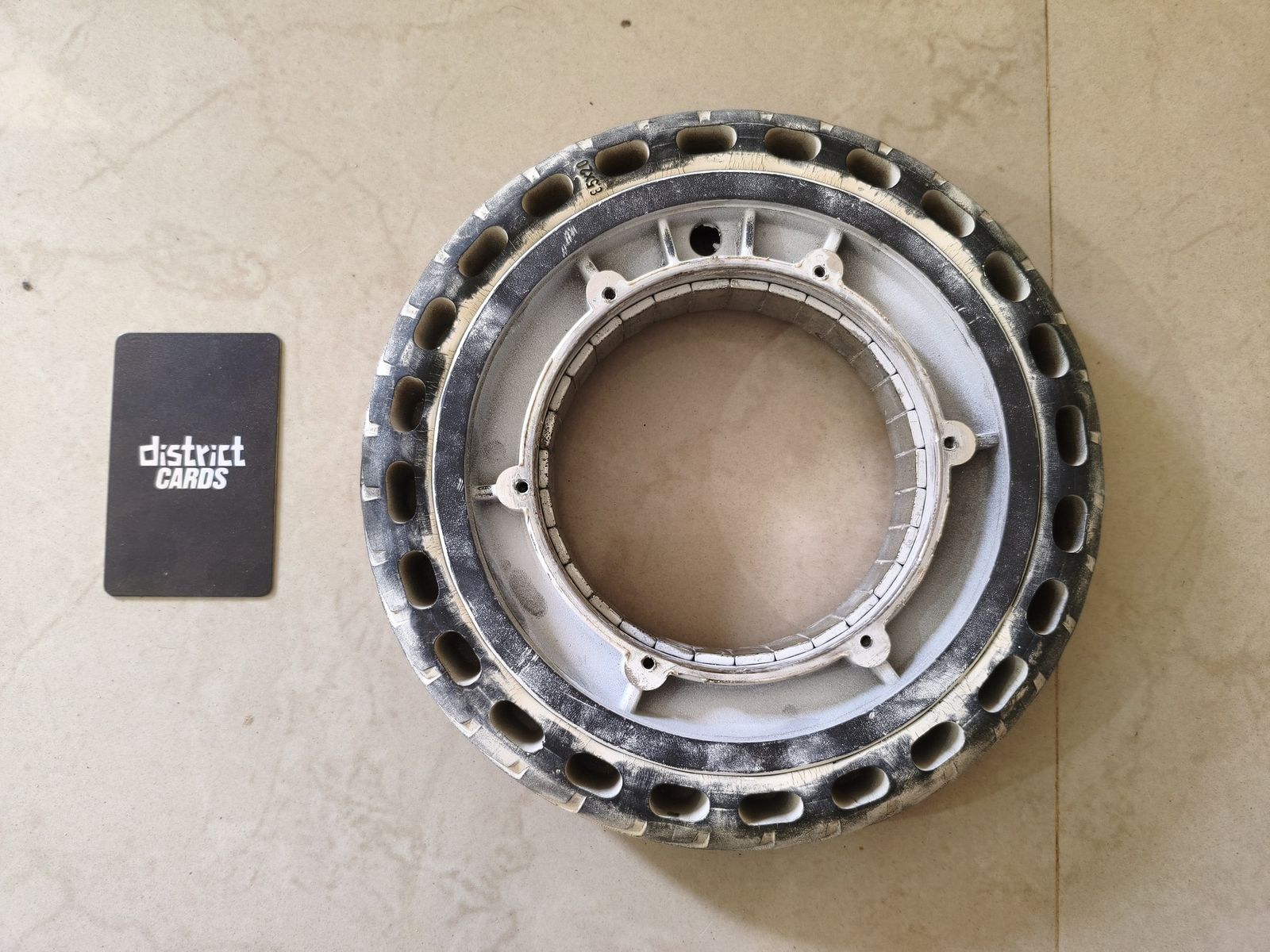

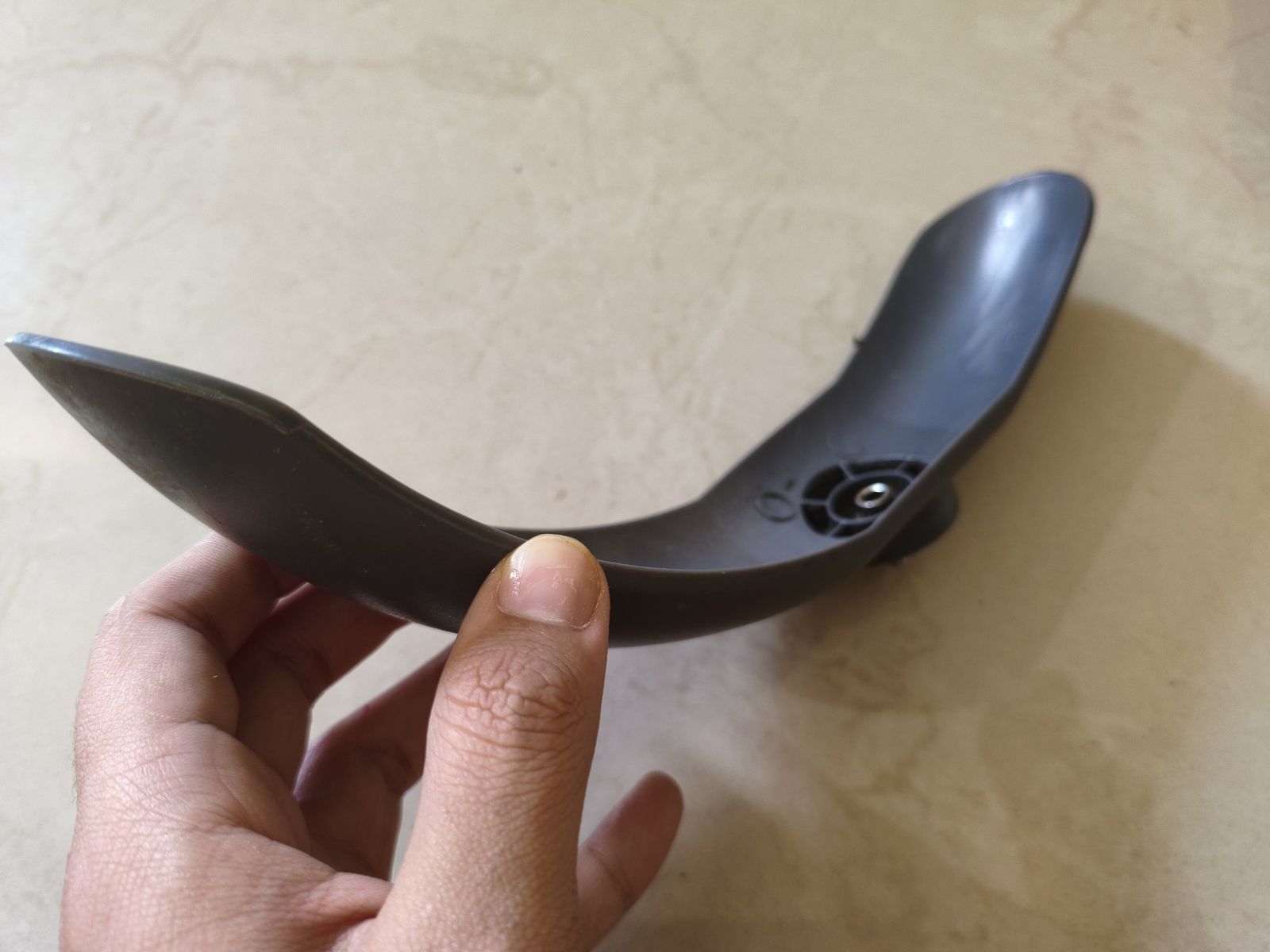

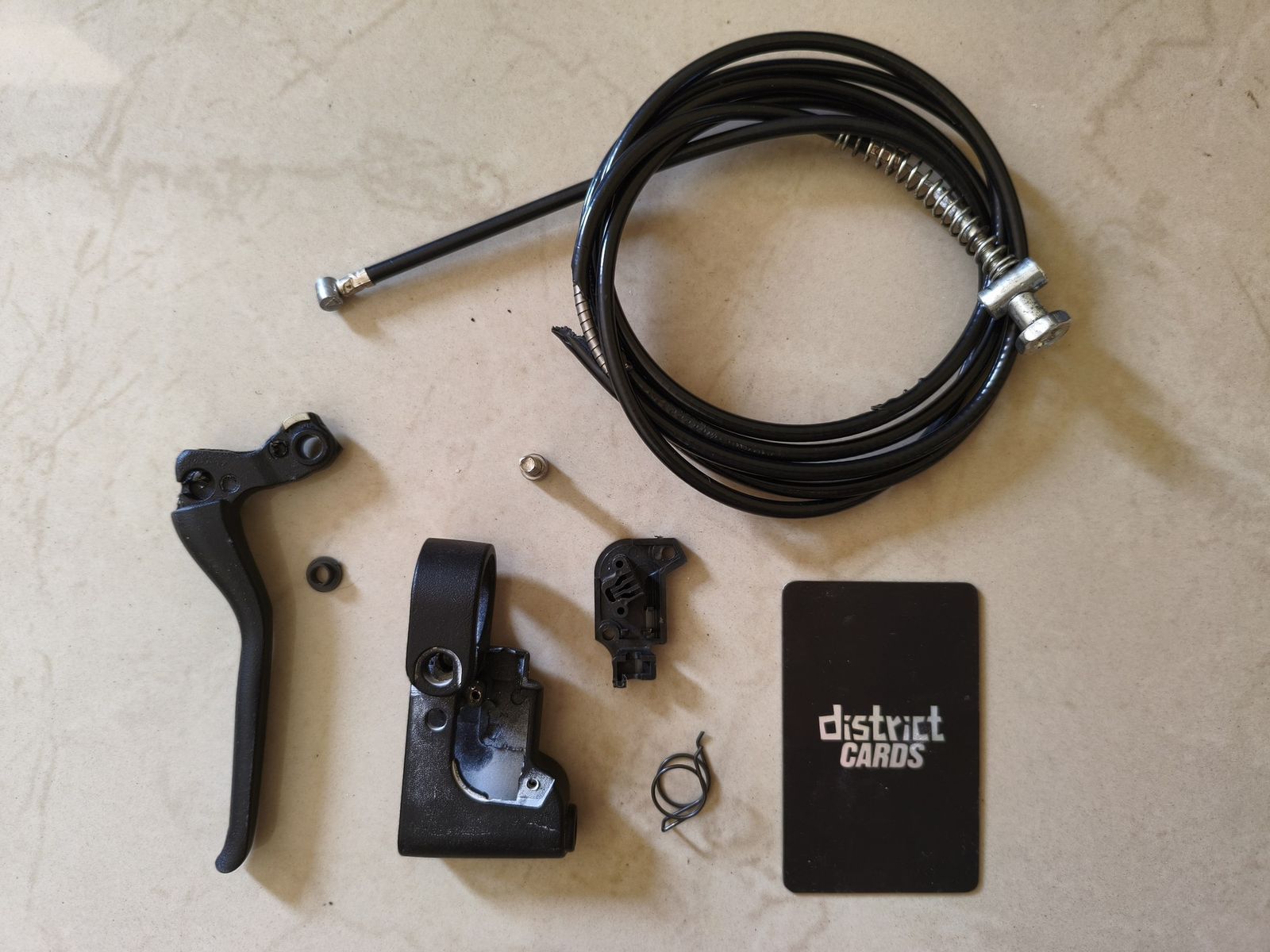

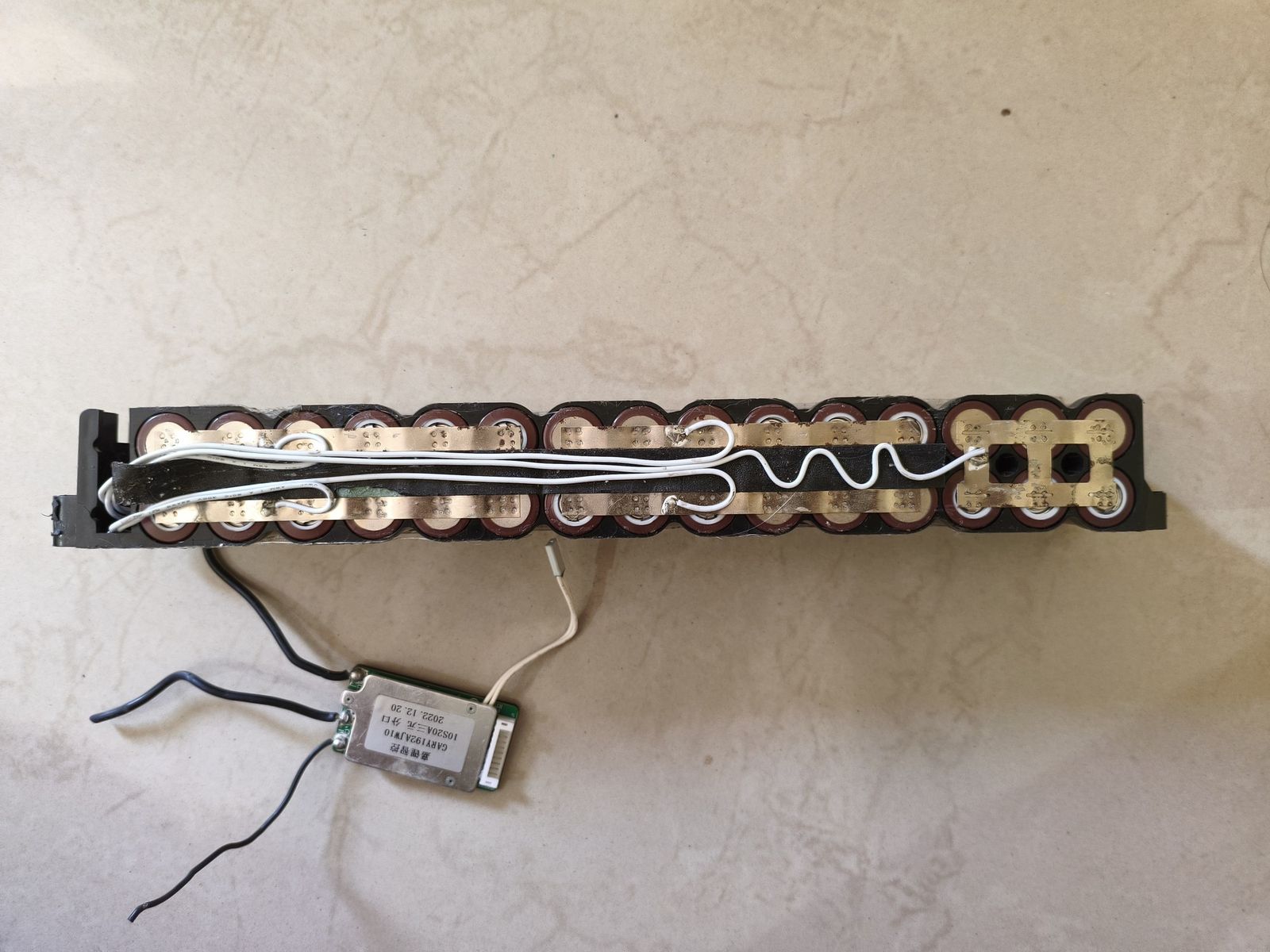

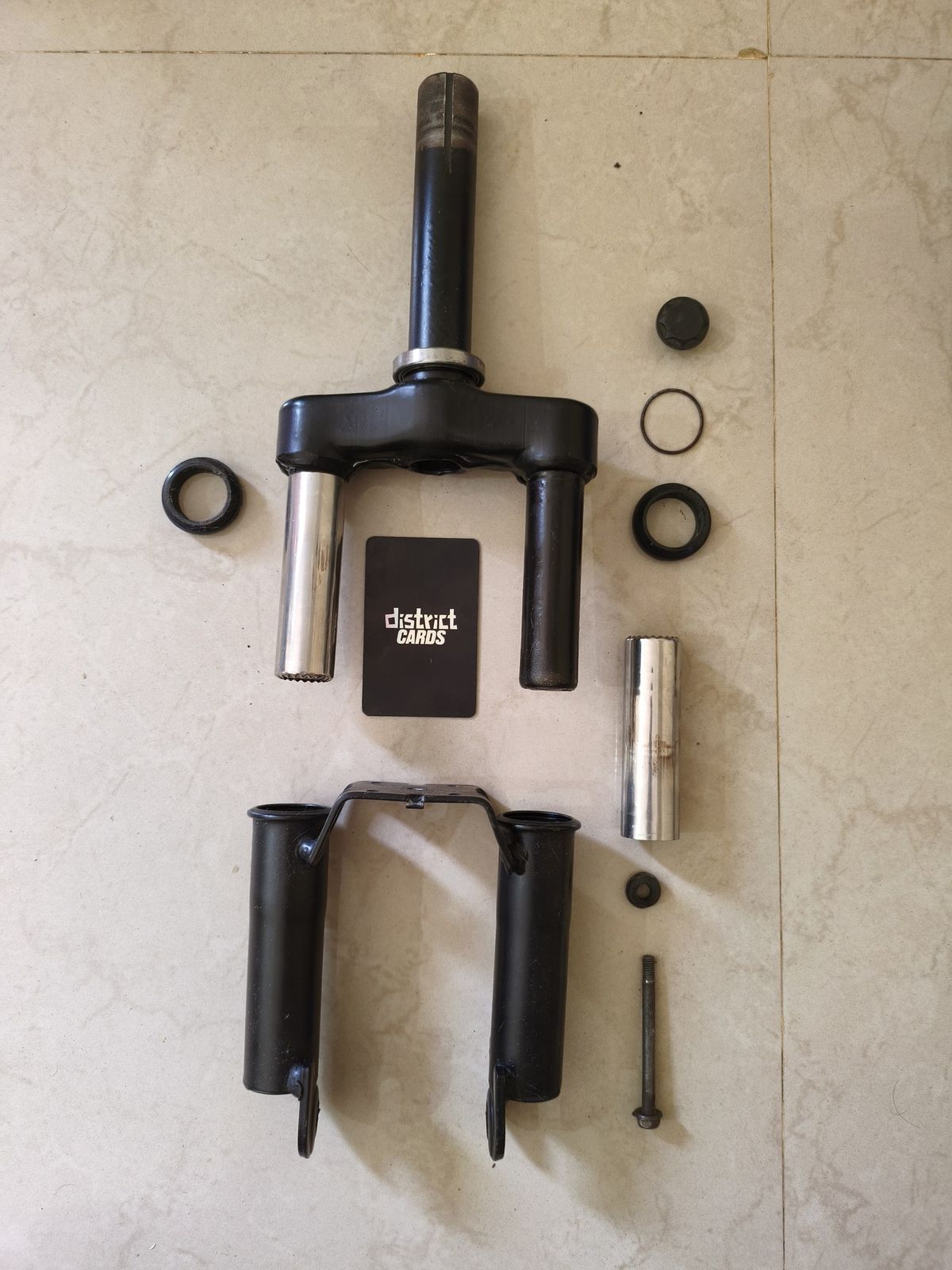

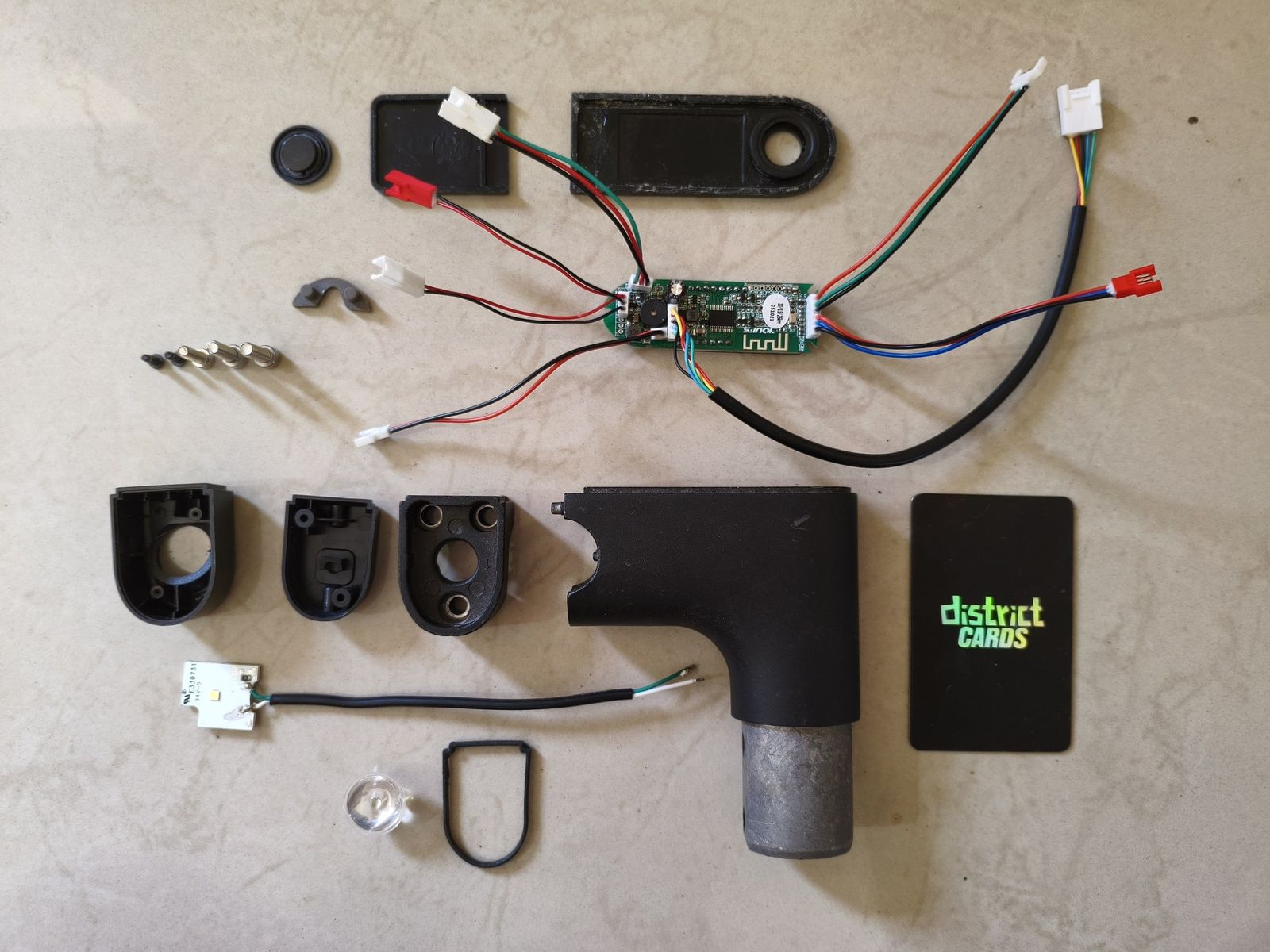

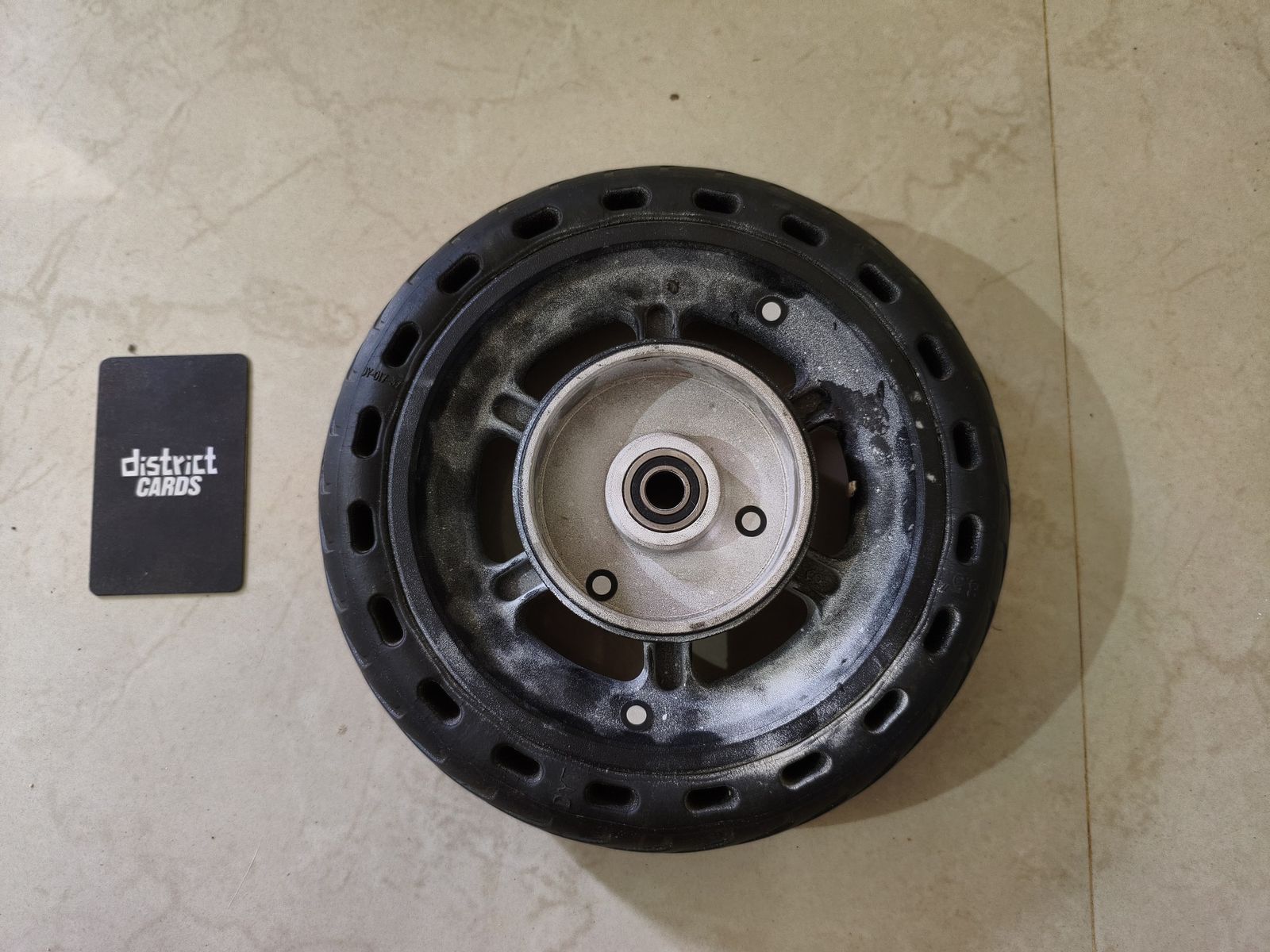

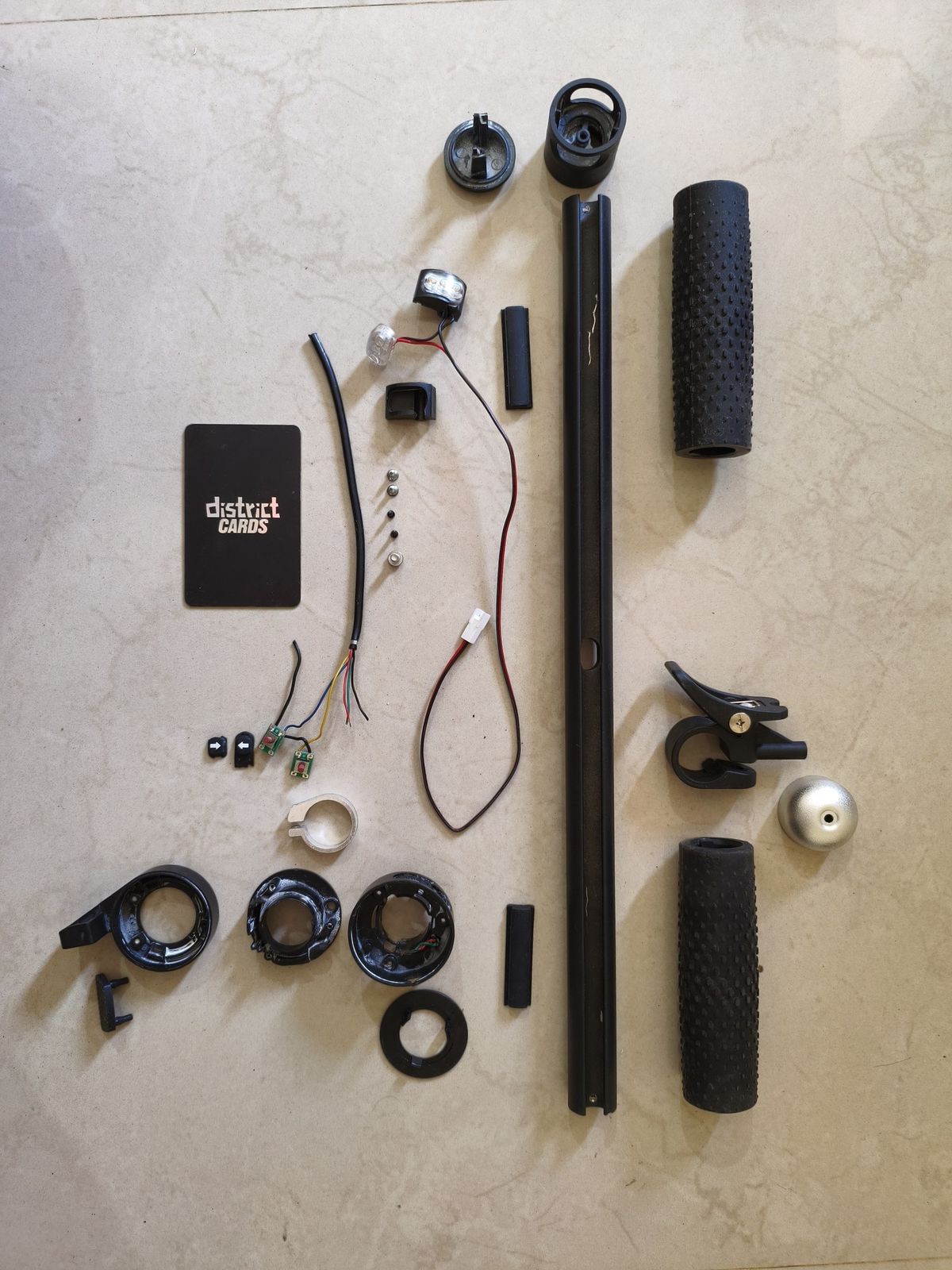

Scanned and built on top

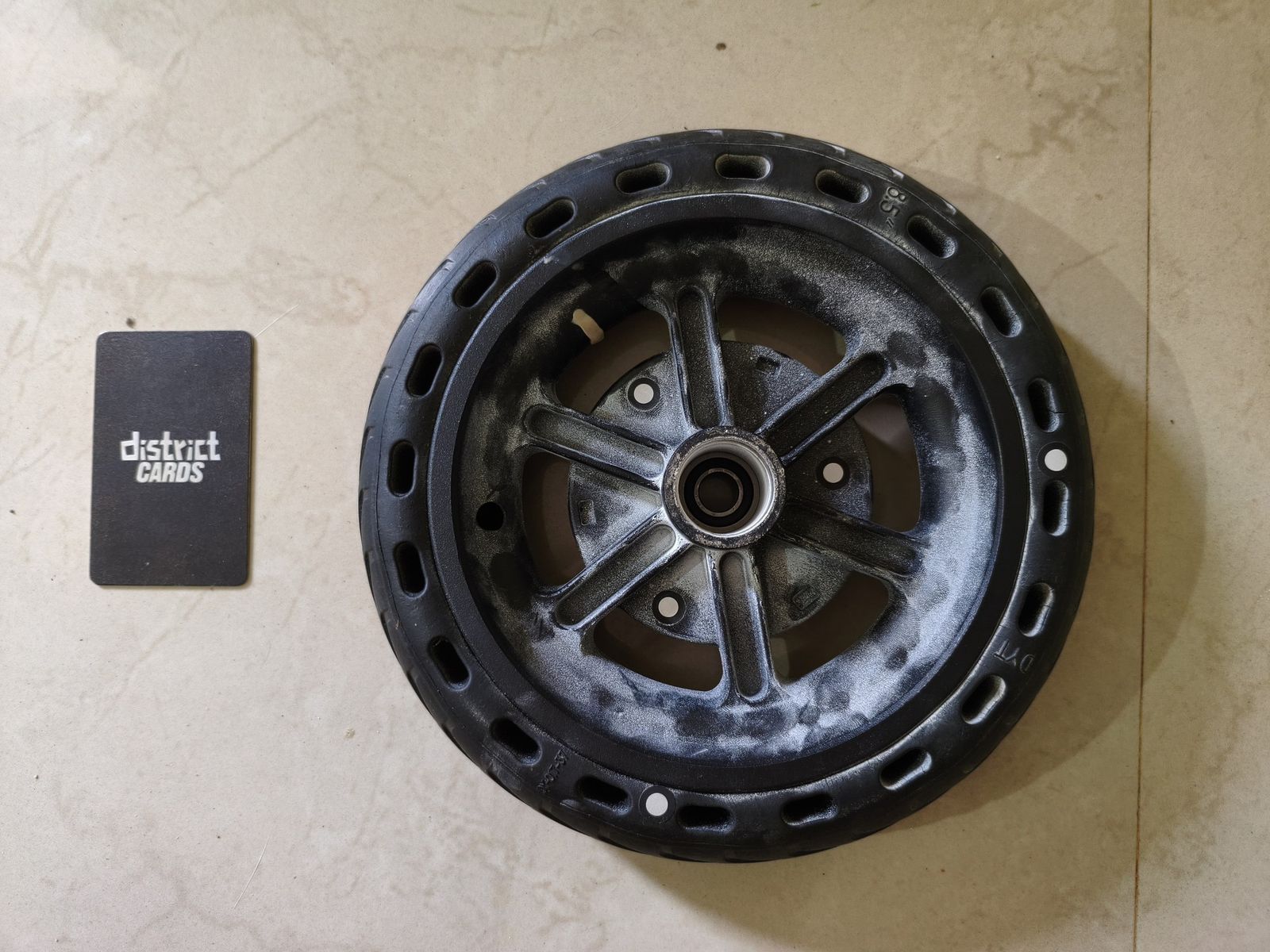

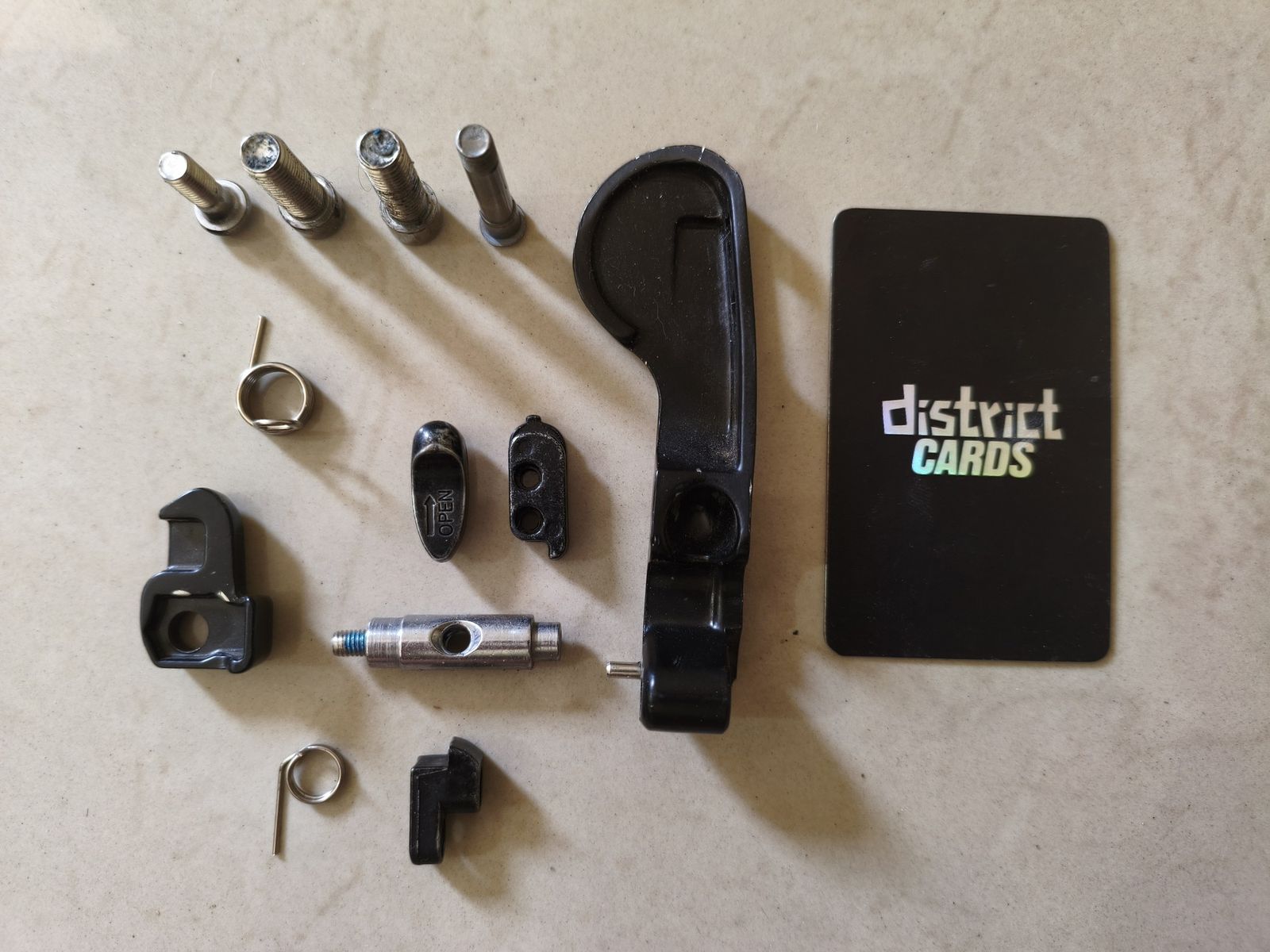

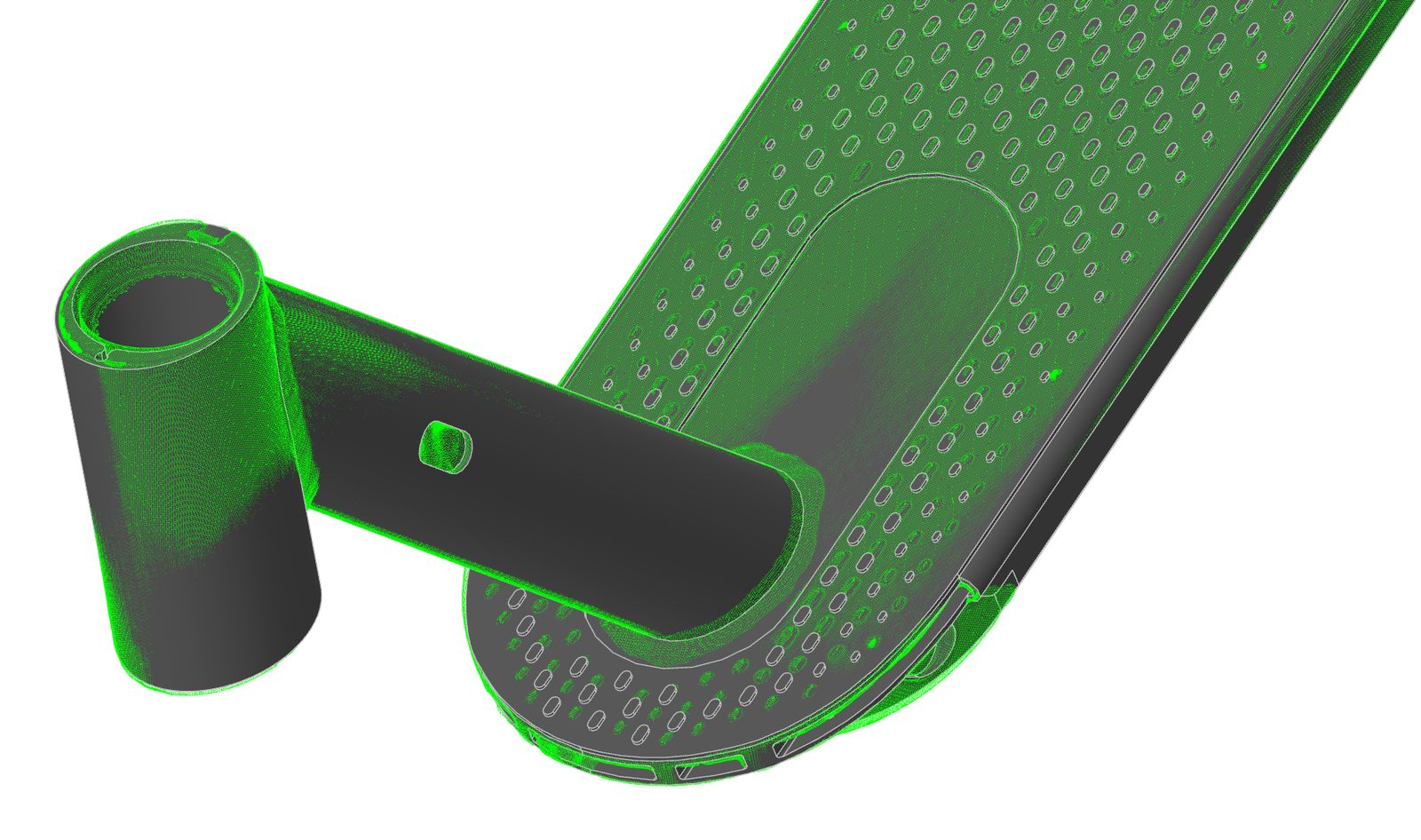

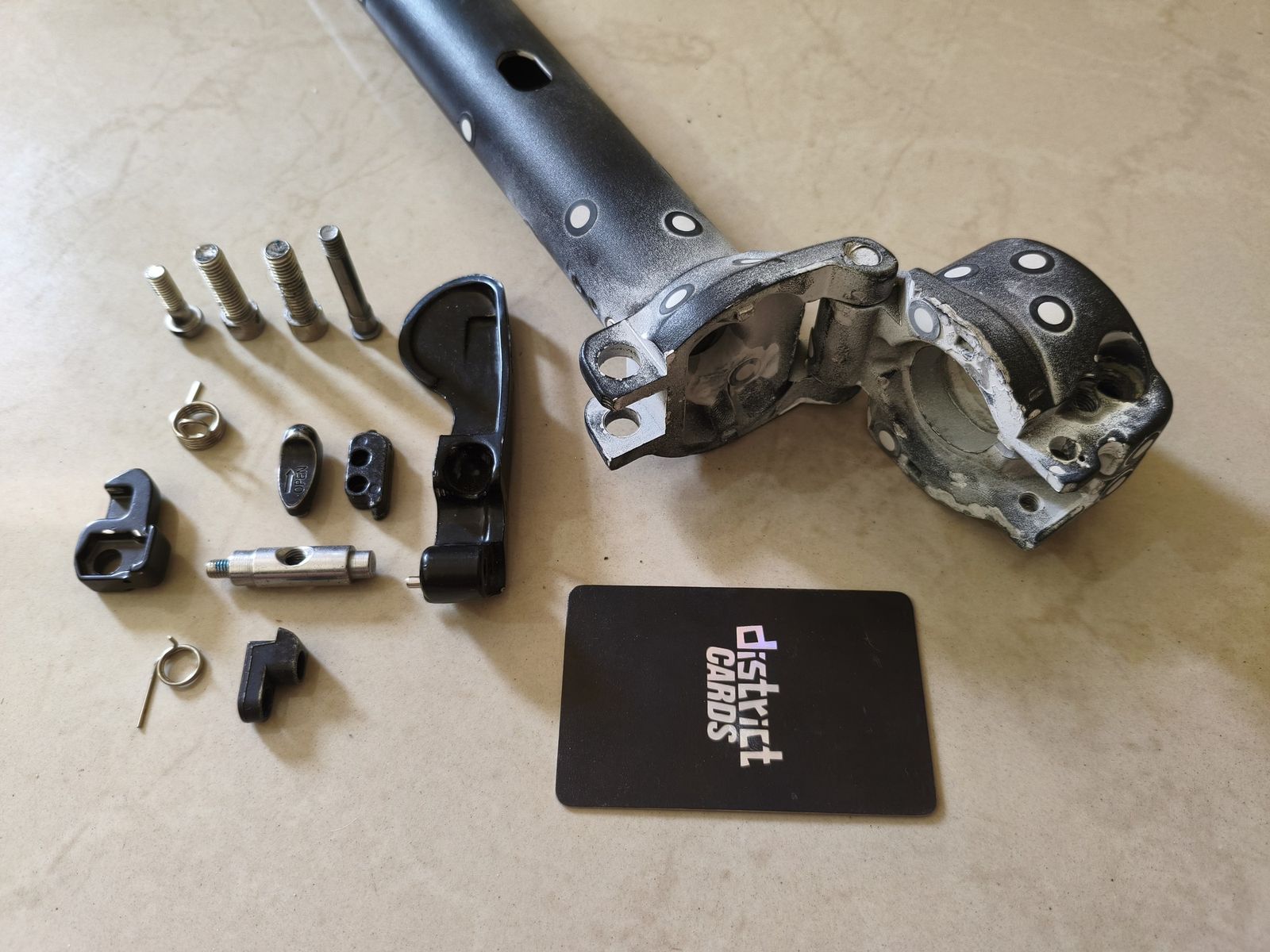

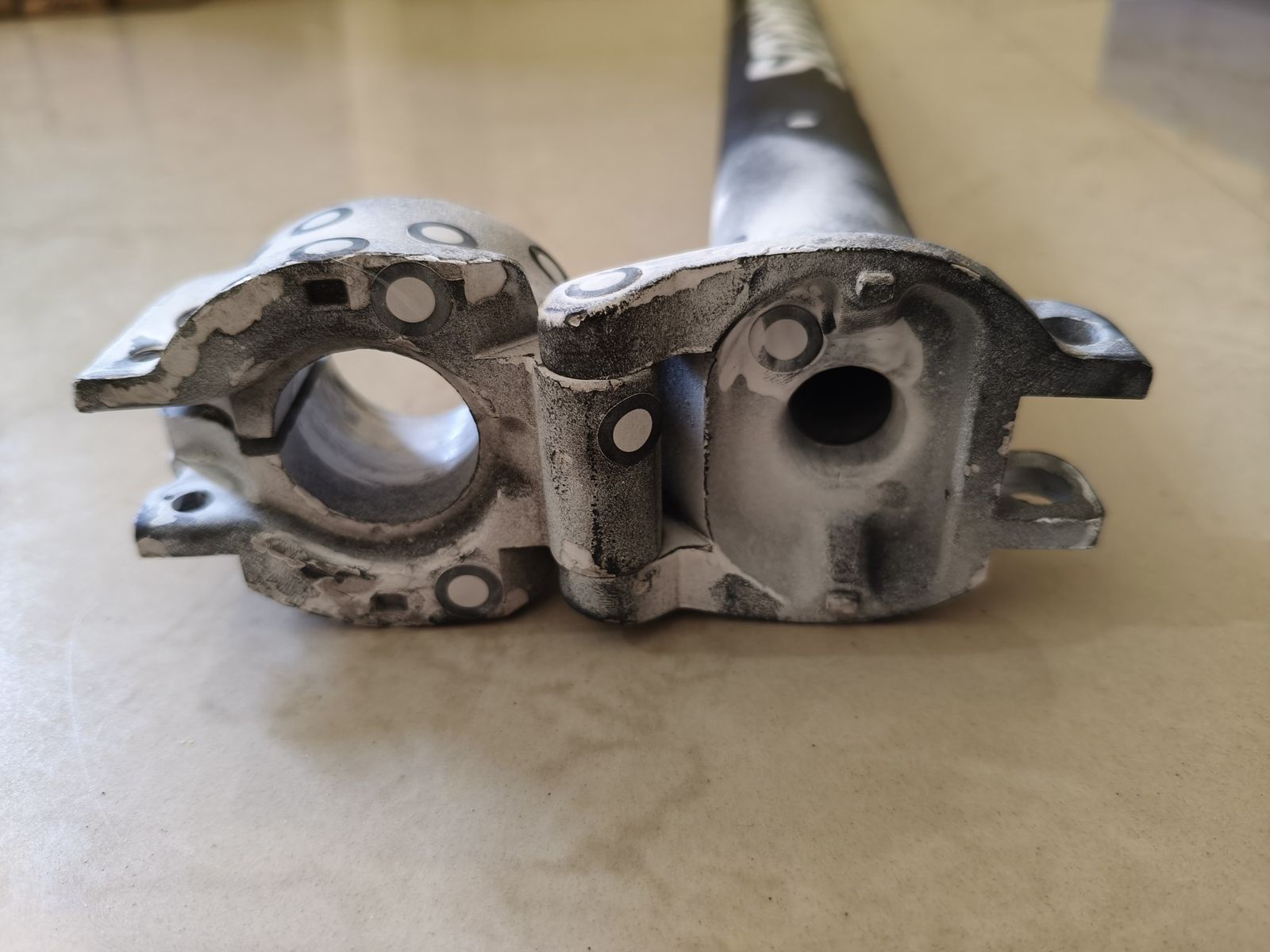

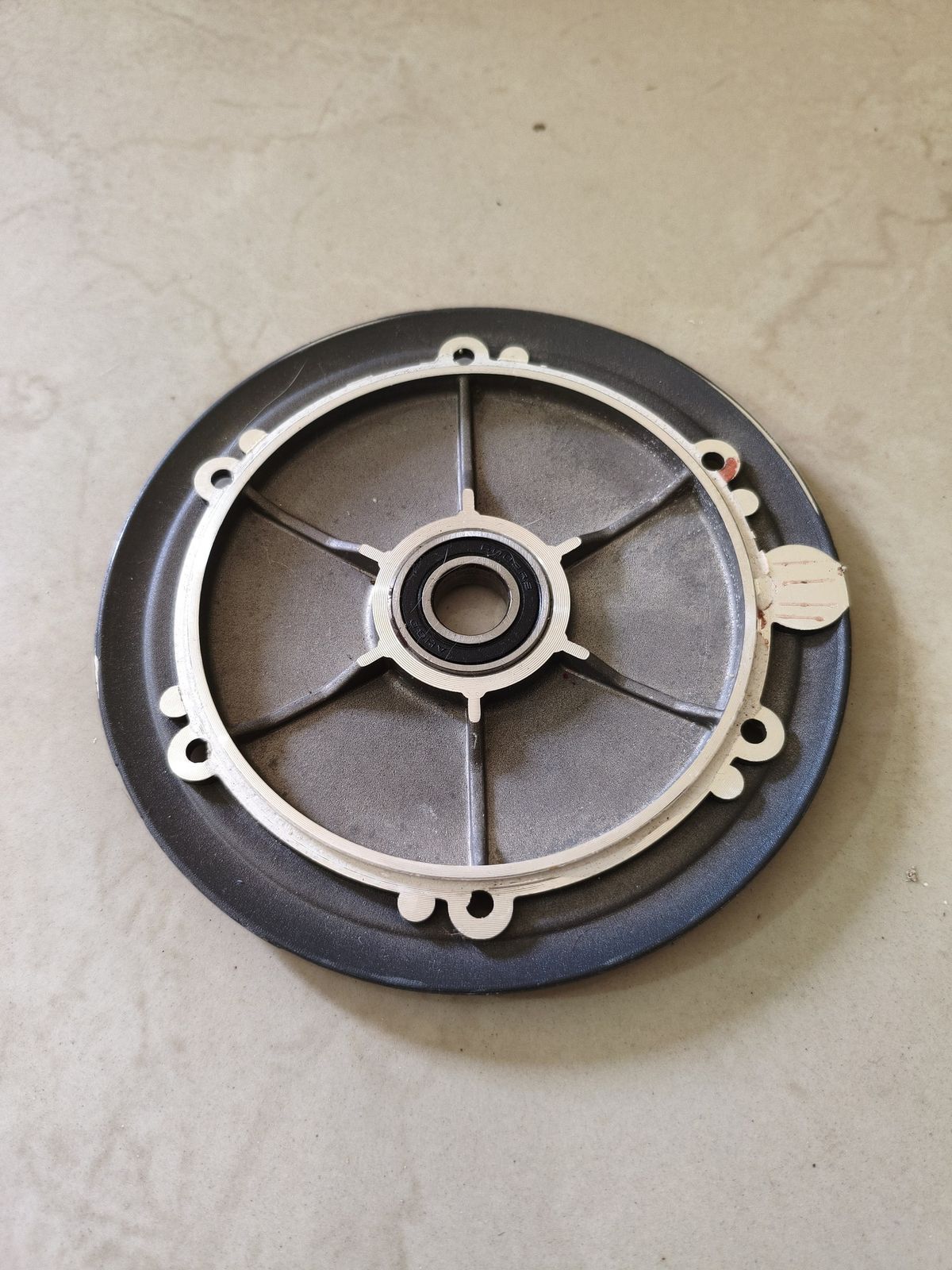

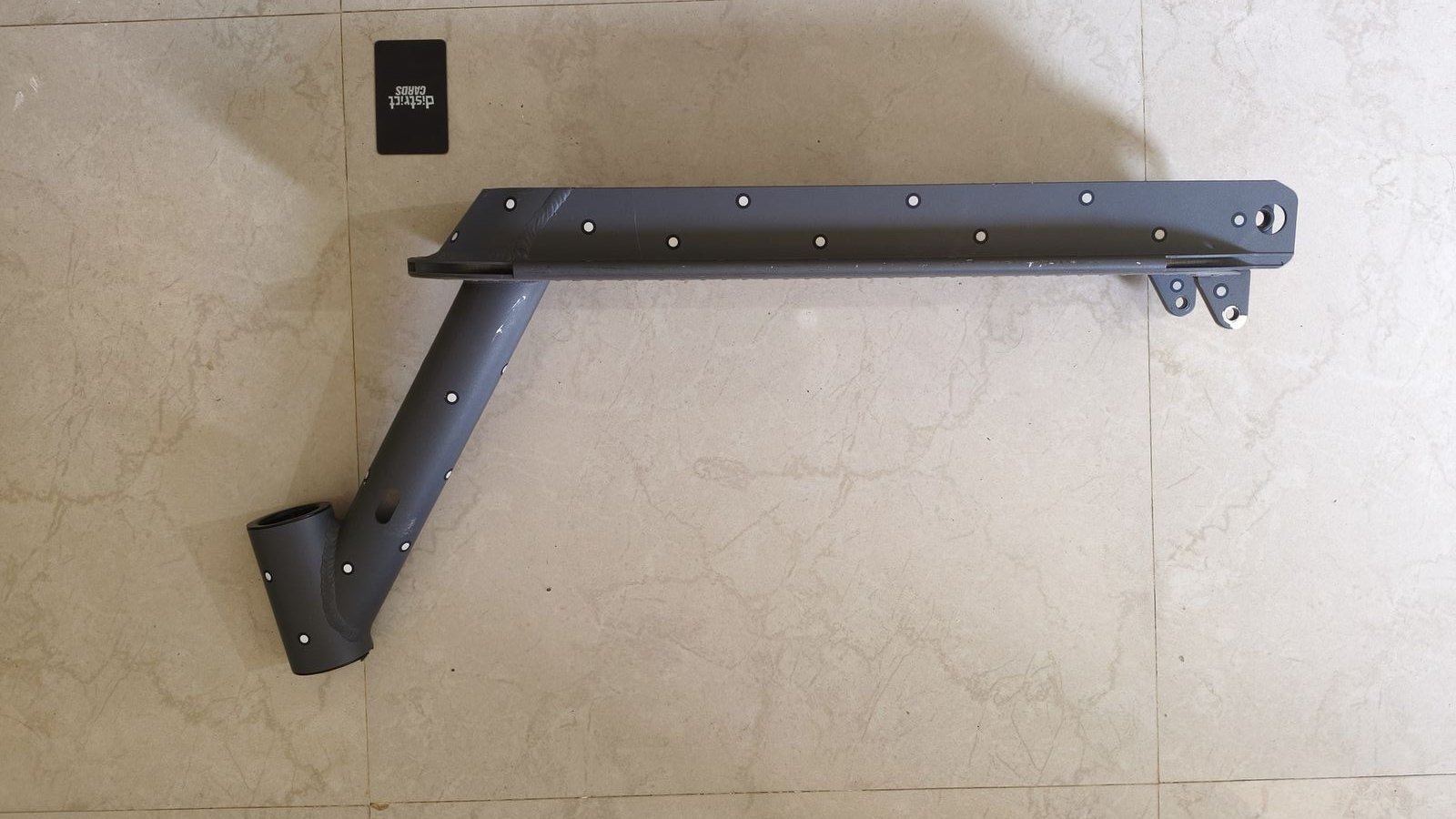

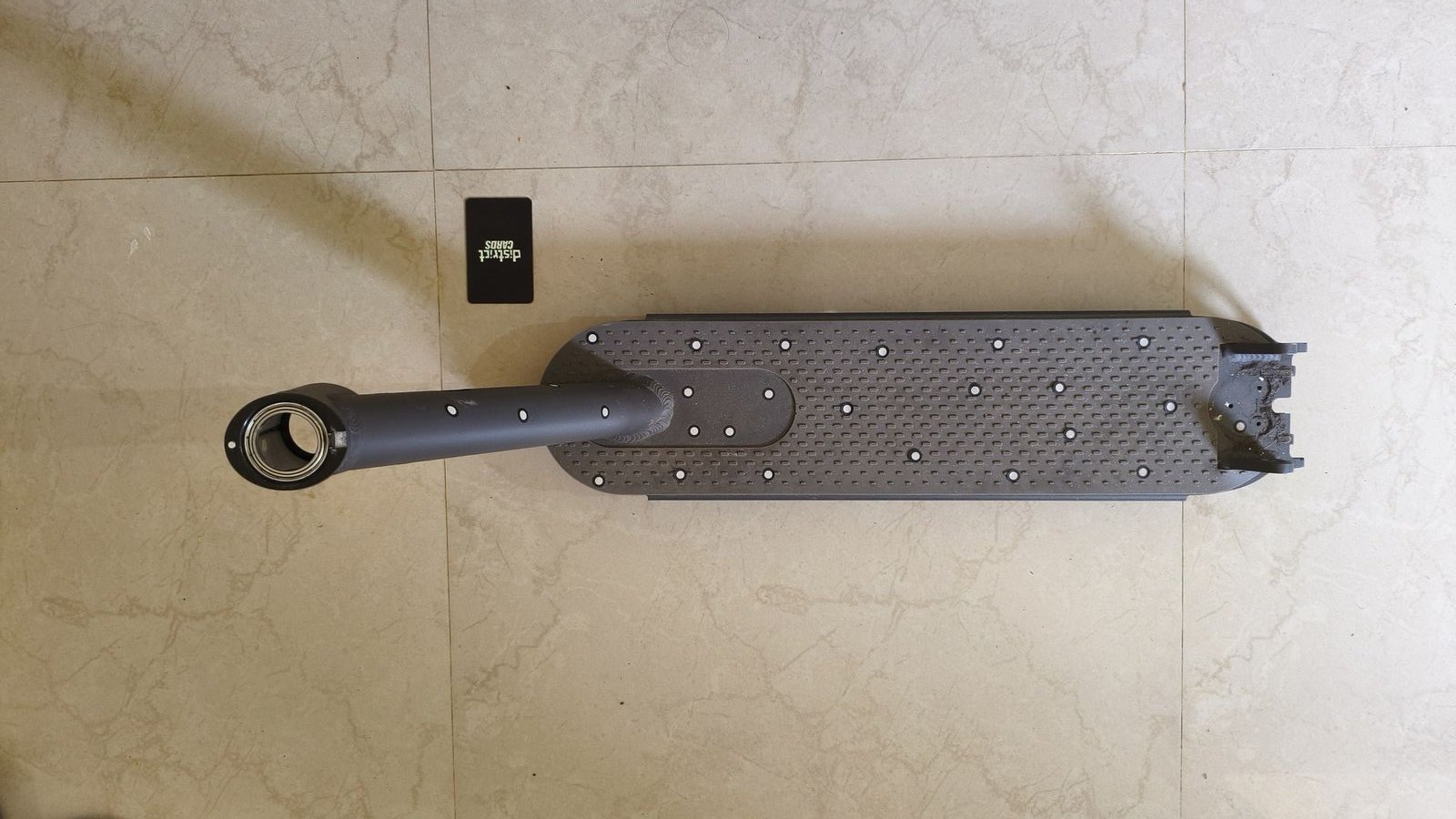

Welded frames and organic parts were laser scanned. The scan was a guide; every feature was modeled from scratch.
ScanModel

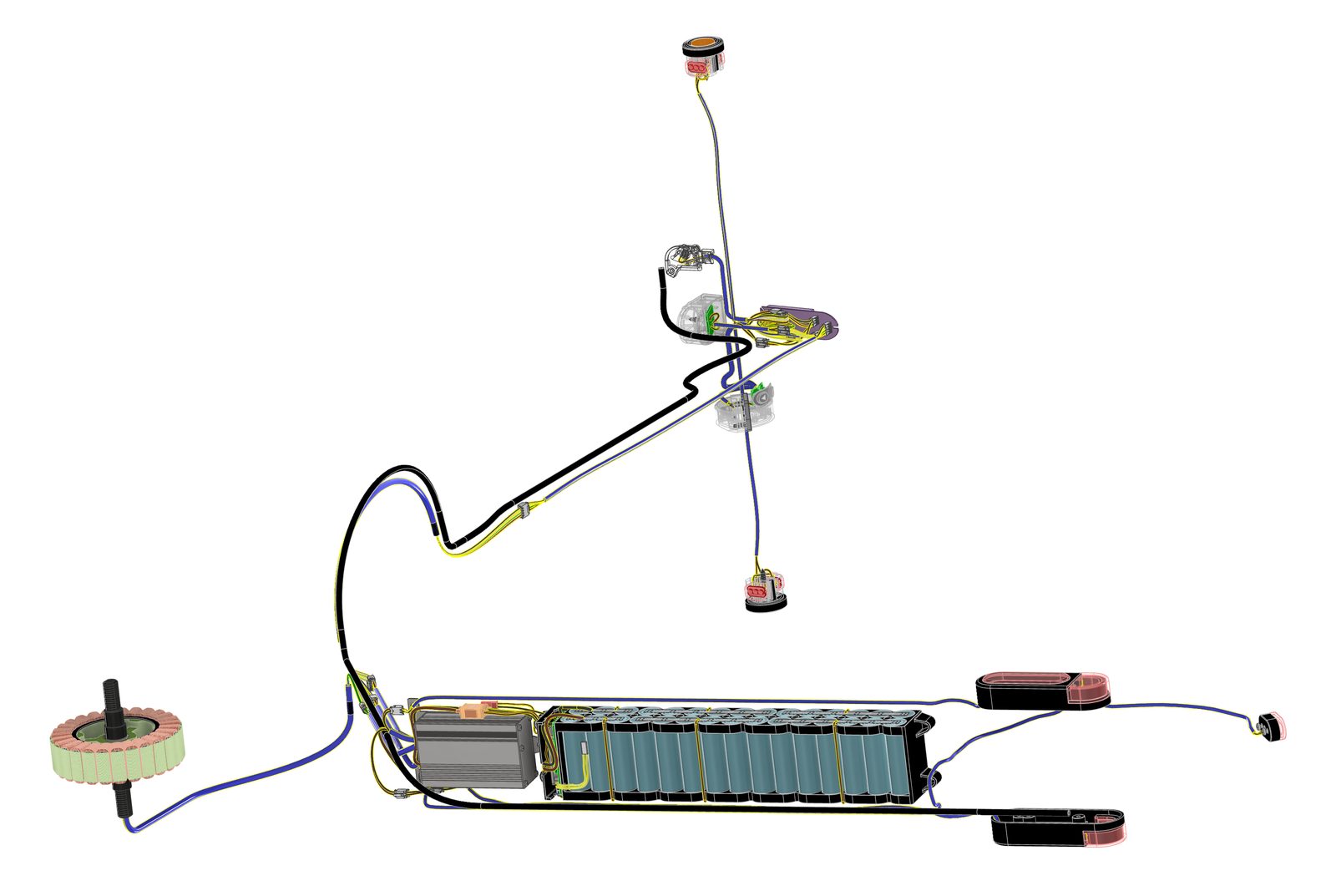

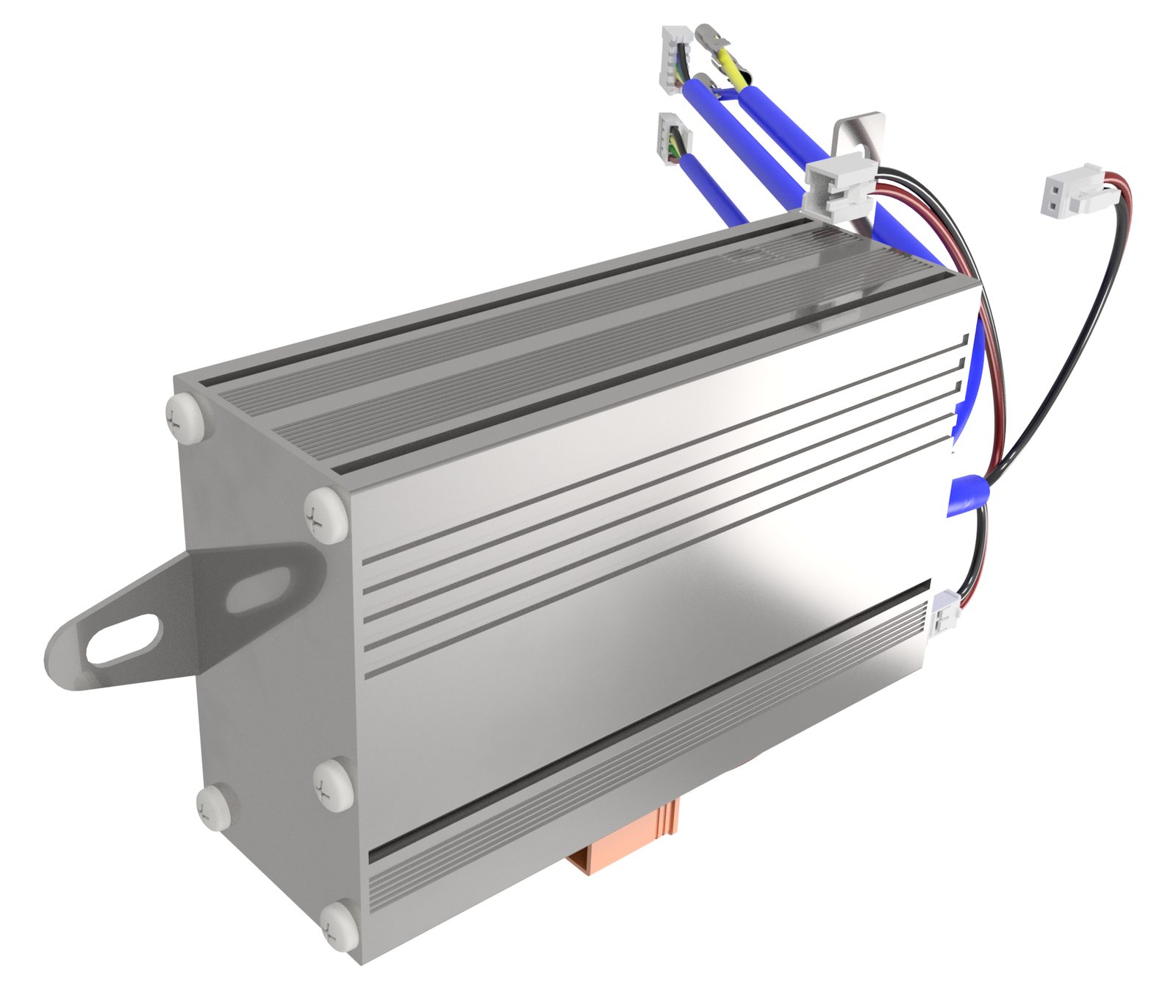

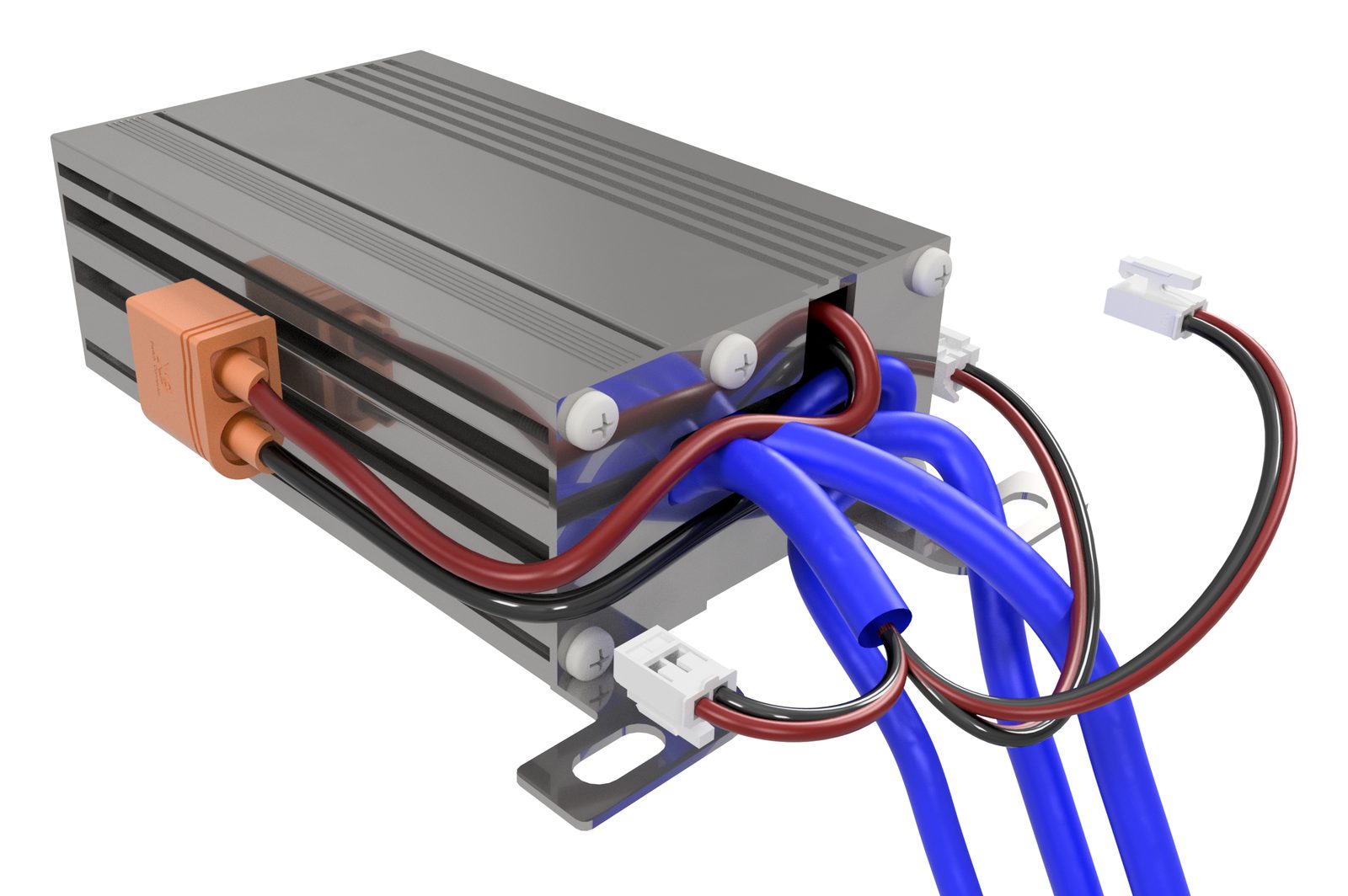

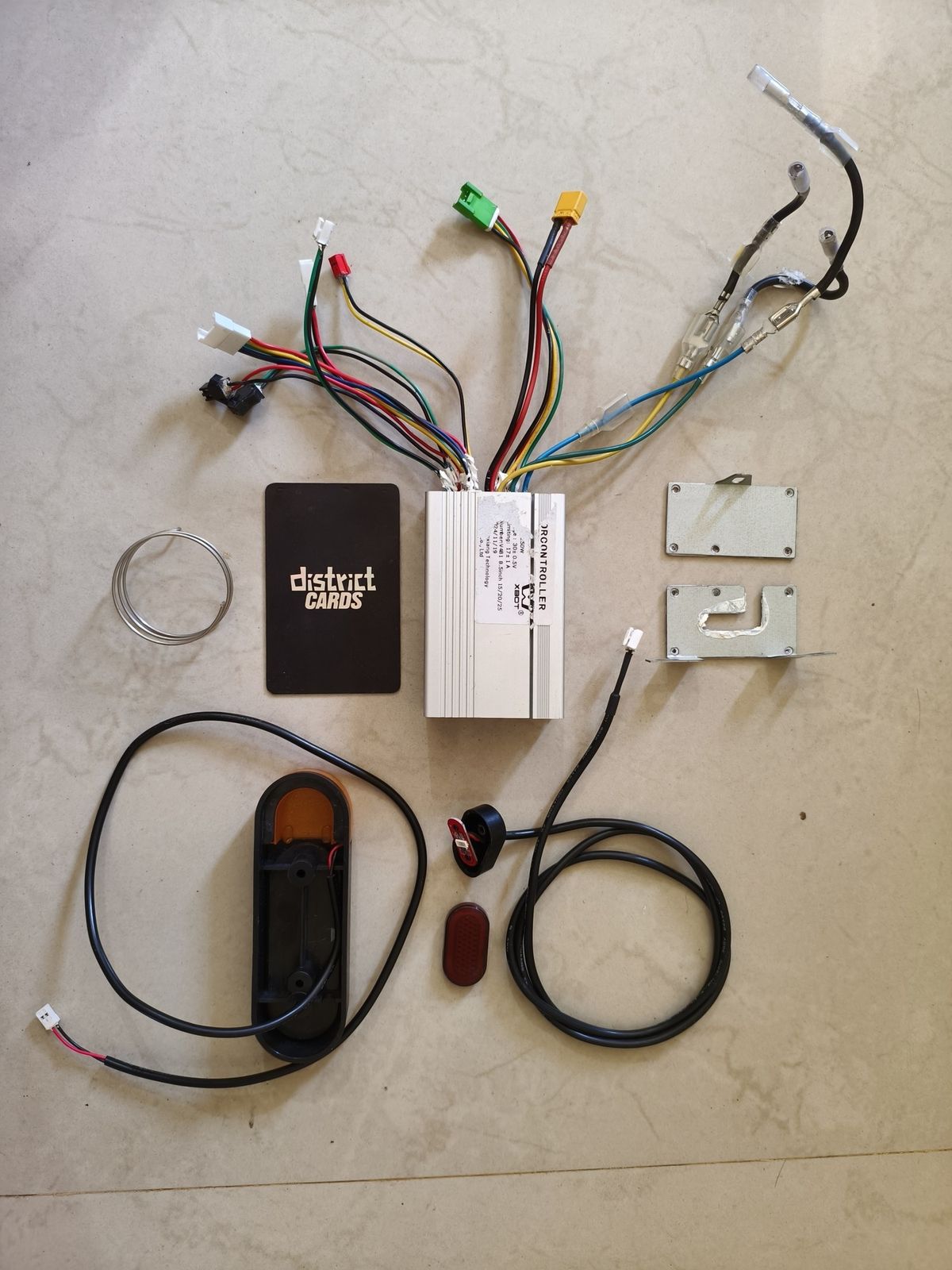

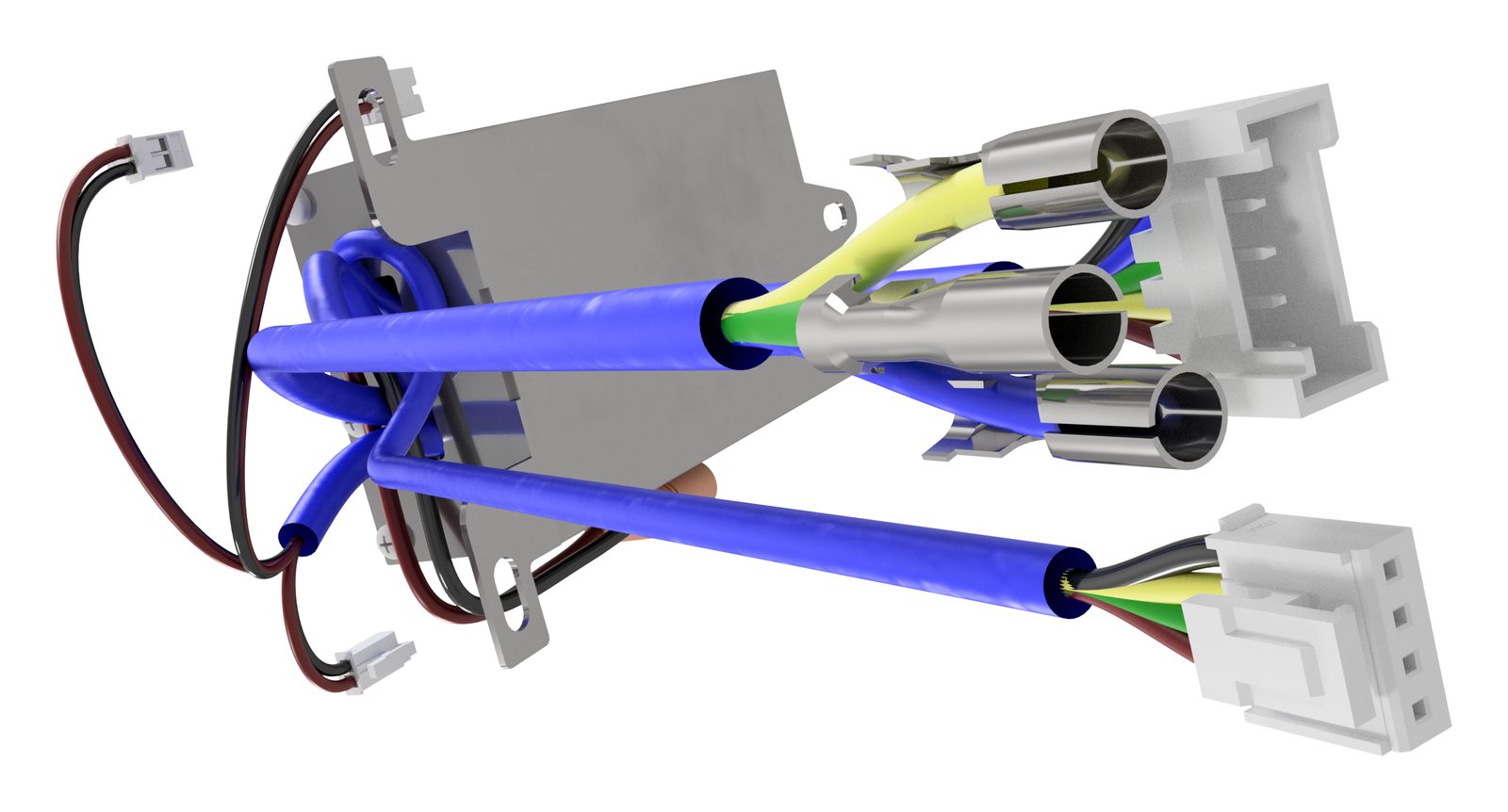

Every wire has a path
All 46 connections traced end to end and routed through the frame in Inventor’s Cable and Harness.

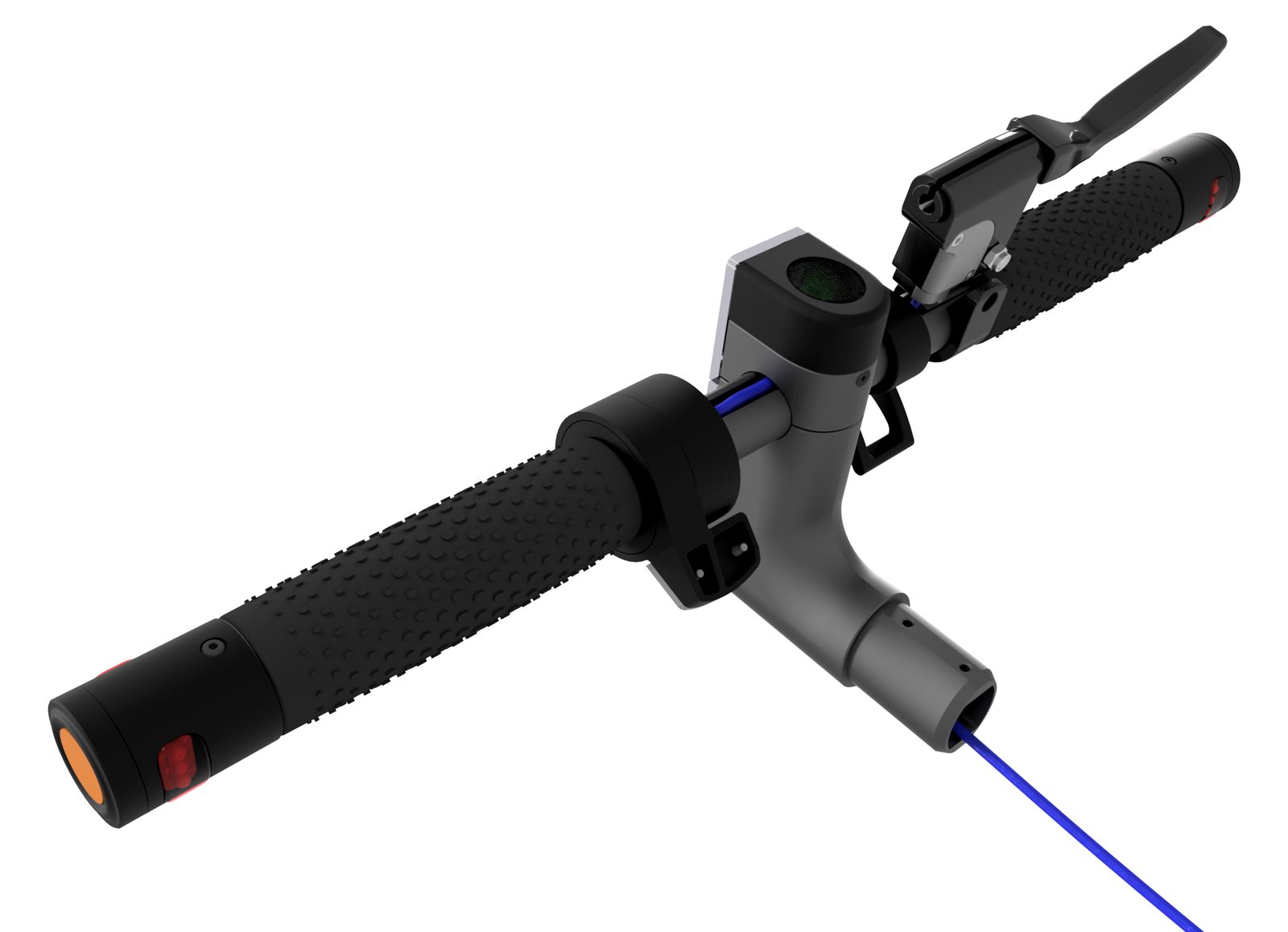

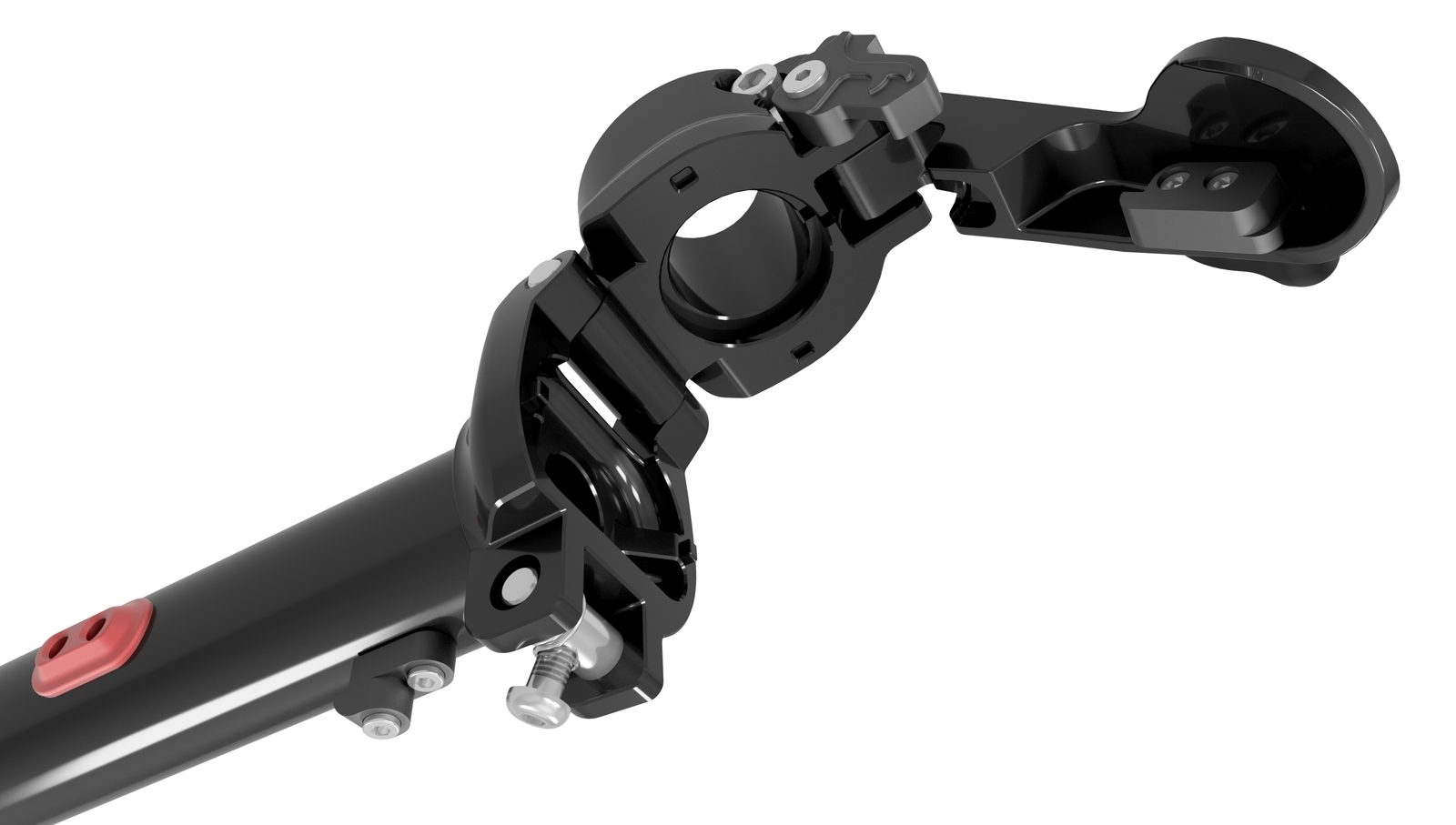

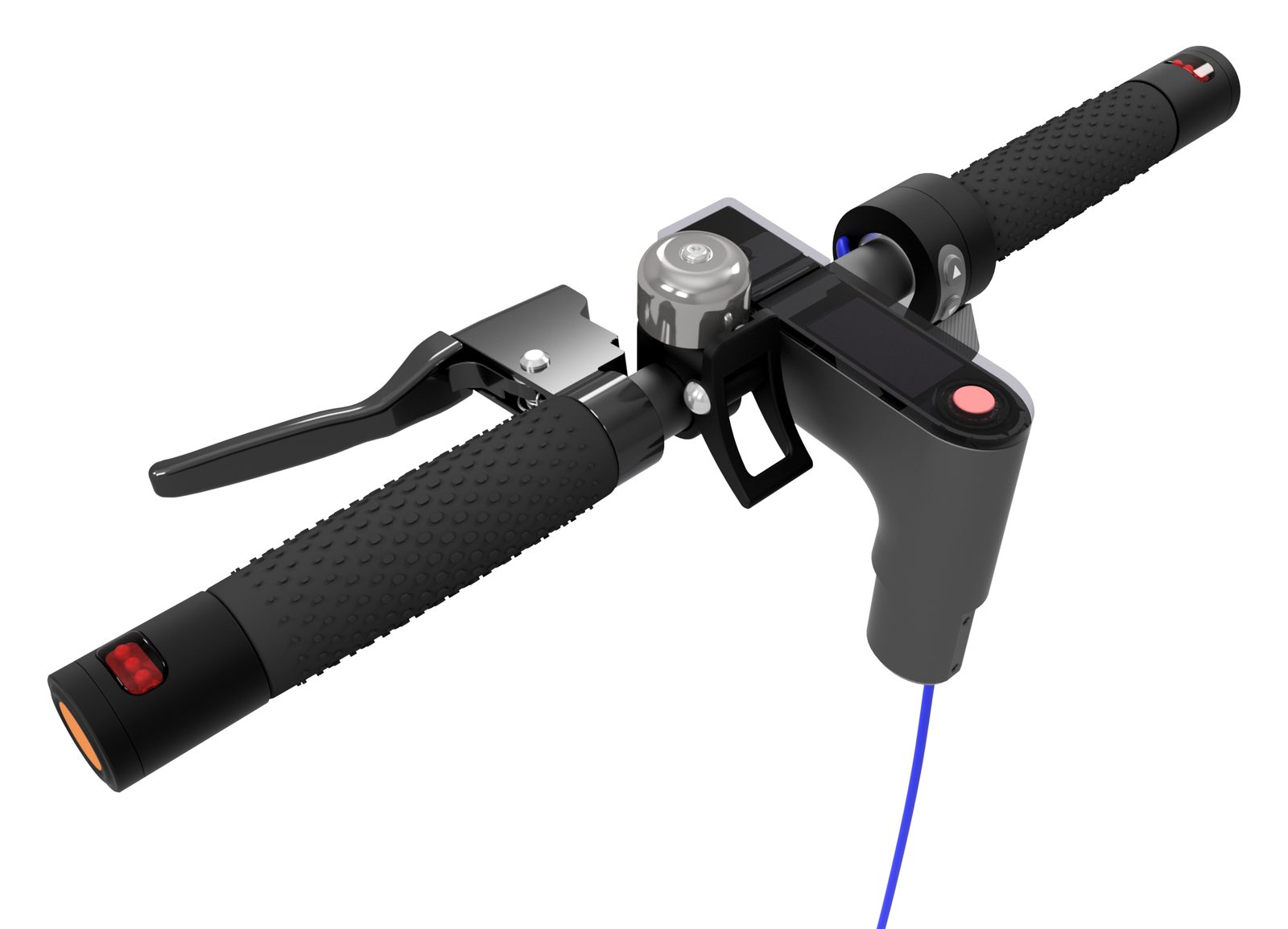

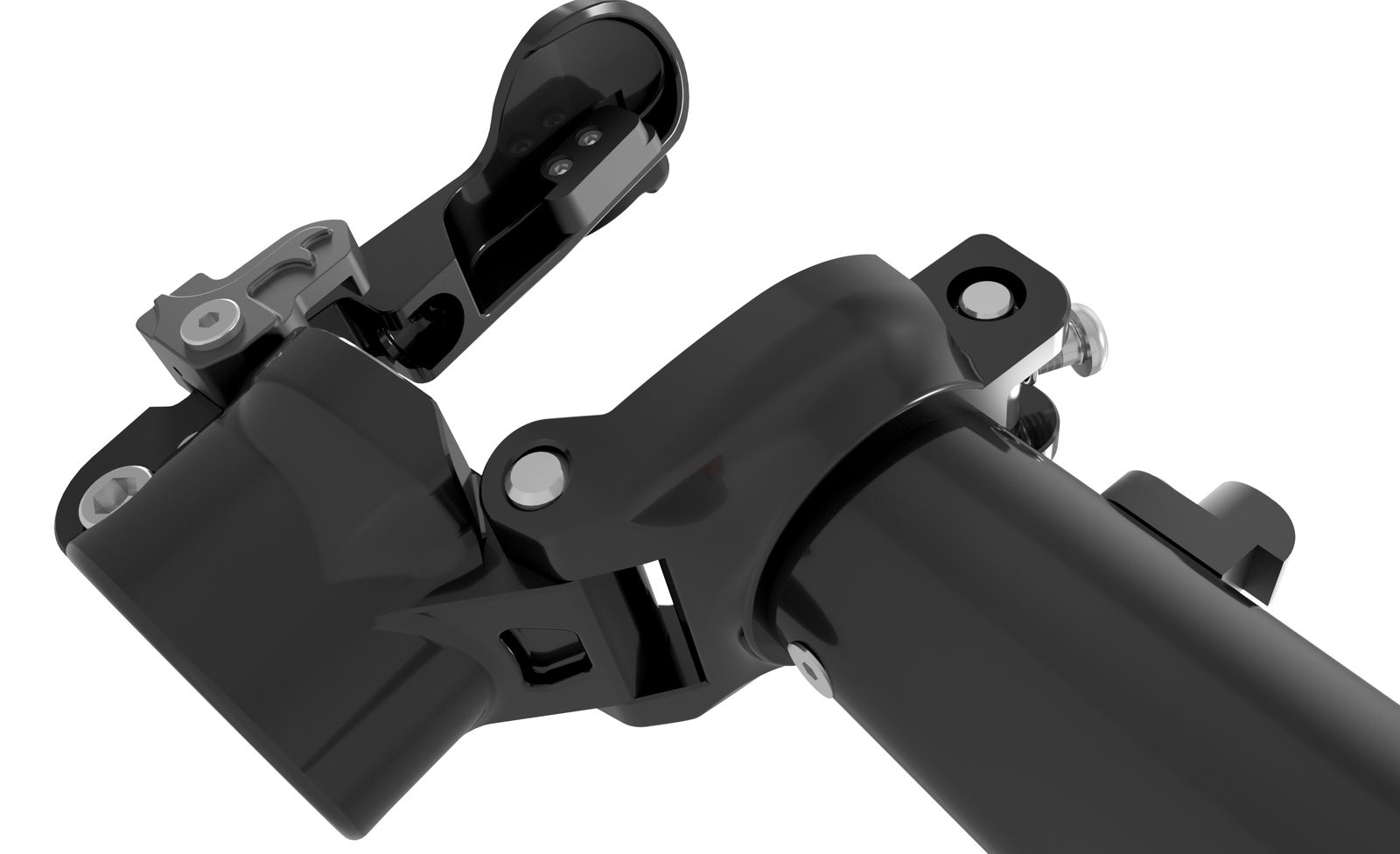

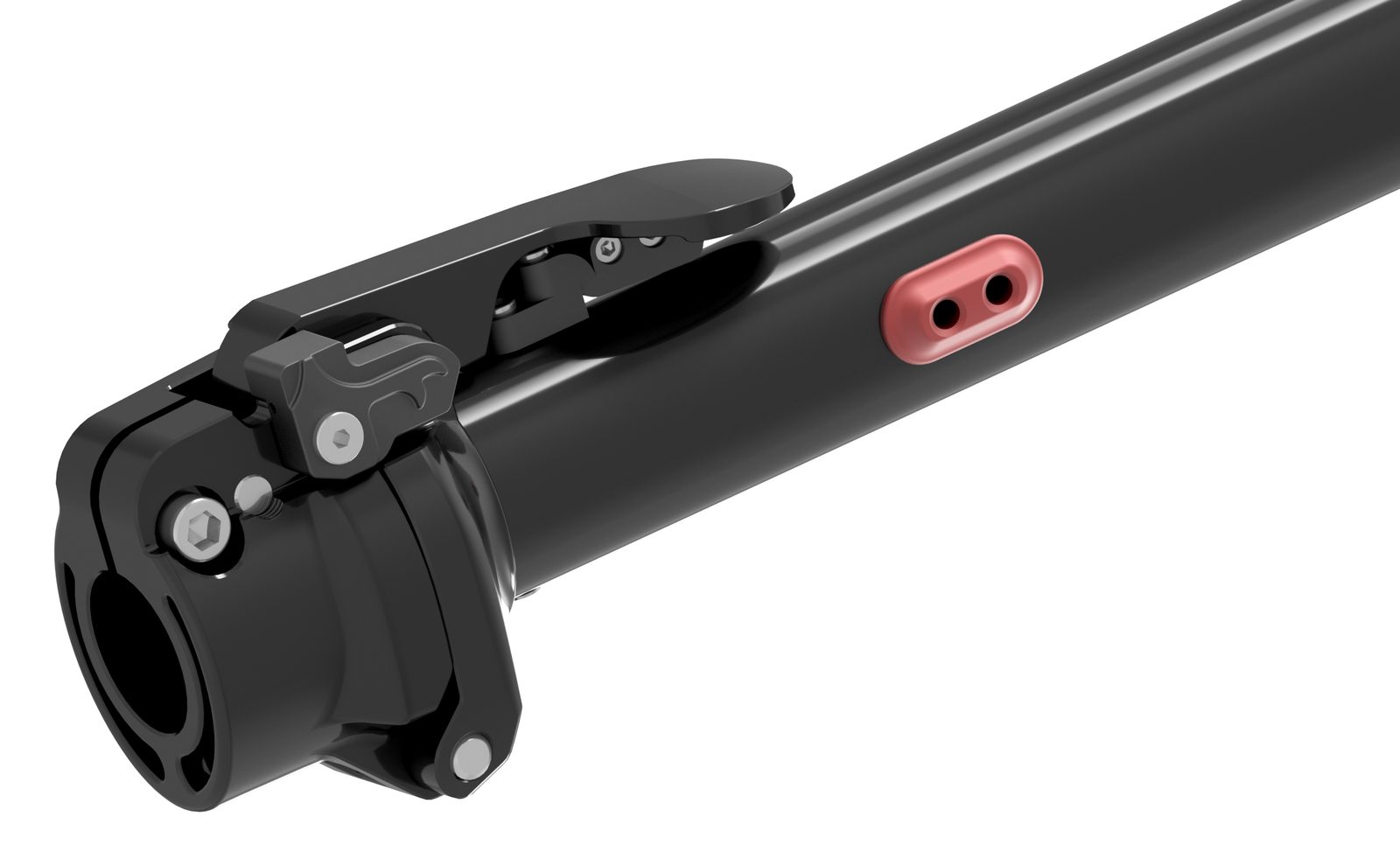

Every moving mechanism
The fold, latch, brakes, throttle and suspension all move through their full travel, so fit problems show up on screen, not in the workshop.
